Sales Description

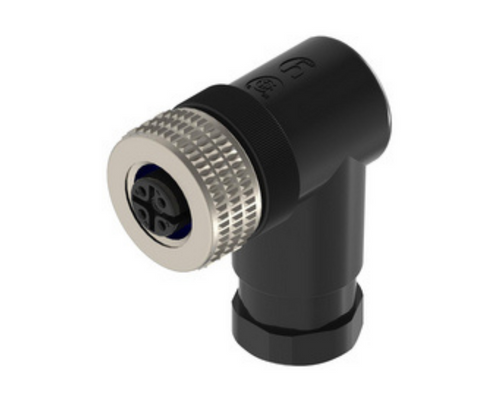

Got a question about this product?Compact circular connector system with industry standard IEC 61076-2-101 M12x1 screw locking interface.
M12 A-Coded cable connectors offer pin-counts of 4 and 5 with a current carrying capacity of up to 4A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state.
Technical Specification
- Approvals NA
- Backshell Included Yes
- Body Orientation Angled
- Connector Type Cable Connector
- Contact Plating Tin
- Contacts Included Yes
- Coupling Area Material Metal
- Current Rating 4A
- Voltage Rating 60V AC/DC
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP67
- EMC Sheilding Capability No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type A-Coded
- Locking System Screw
- Min. Mechanical Mating Cycles 20
- Max. Wire Gauge/Cross Sectional Area 0.75mm²
- Min. Cable Entry (mm) 6
- Max. Cable Entry (mm) 8
- Number of Ways 5
- Operating Temperature -20 to +90°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Screw
