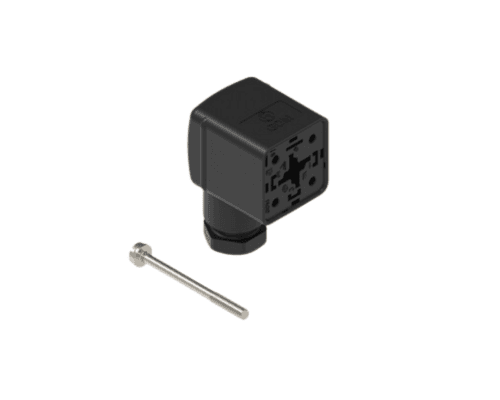

3 Way Type-A Female Cable Connector with Screw Contacts, 4.5-10mm Angled Cable Entry, without Facial Gasket, IP40 (GDM2109-A0U-10F)

934888104 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number934888104
Product TypeConnector
Connector SeriesGDM
ApprovalsVDE, SEV
Backshell IncludedYes
Body OrientationAngled
Connector TypeCable Connector
Contact PlatingTin
Contacts IncludedYes
Coupling Area MaterialPlastic Face/Metal Screw
Current Rating16A
Voltage Rating230V
Electrical NotesNotice Derating
Degree of Ingress ProtectionIP40
EMC Shielding CapabilityNo
Gender of InsertFemale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemCentral Screw
Min. Mechanical Mating Cycles50
Max. Wire Gauge/Cross-Sectional Area1.50mm²
Min. Cable Entry (mm)4.5
Max. Cable Entry (mm)10
Number of Ways3
Operating Temperature-40 to +125°C
Positive Earth (PE)Yes
Shell sizeNA
Termination Method/TechnologyScrew

About this Series

Hirschmann logo

High-quality products for the automation industry, delivered at great value

In brief:

Robust multi-pin rectangular connector system with industry standard EN 175301-803 (formerly DIN 43650) central screw locking interface.

GDM connectors offer pin-counts of 3 (2+PE) and 4 (3+PE) with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 ingress protection in mated state.

Hirschmann GDM (valve connectors) series

These connectors are designed to meet the harsh demands of hard practical day-to-day work in every form. They are square or rectangular in shape and are commonly used on pneumatic, electro-magnetic and hydraulic actuators.

Various components can be built into the housings of the GDM series connectors in instances where they have not been integrated into the application, including:

  • Optical status displays
  • Rectifiers
  • Protective elements

Often used in industrial environments, the Hirschmann GDM series is available in the three shell sizes A, B and C. These each include crimp, screw and solder termination.

As the long-standing series has evolved over the years so have the choice of profiles. Type-A connectors have just the one interface whereas Type-B and C have two standards/pin spacing options;

EN 175301-803-A Standard (formerly DIN 43650)

EN 175301-803-B Standard (formerly DIN 43650). Often referred to as 10mm pin spacing type.

Industrial Standard (formerly NEMA standard). Often referred to as 11mm pin spacing type.

EN 175301-803-C Standard (formerly DIN 43650). Often referred to as 8mm pin spacing type.

Industrial Standard (formerly NEMA standard). Often referred to as 9.4mm pin spacing type.

A number of electronic components, including LED function indicators and rectifiers, are also available for the connectors, as well as the basic 2+PE an 3+PE field attachable versions.

Among the key features of these products are:

  • 3 & 4 pin variants (including PE)
  • Voltages up to 400V (type A), 250V (types B, C) & currents up to 16A
  • Moulded and field attachable variations
  • Large cable connection space, plus simple assembly
  • International approvals VDE, UL, CSA, GL
  • Various connection possibilities

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
