934129100

Hirschmann / CA Series

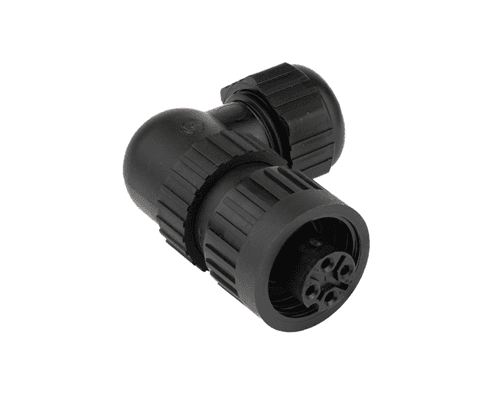

4 Way Female Cable Connector with Screw Contacts, 6-12mm Angled Cable Entry, IP65 & IP67 (CA 3 W LD)

934129100 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number934129100
Product TypeConnector
BrandHirschmann
Connector SeriesCA
ApprovalsUL, CSA, VDE
Backshell IncludedYes
Body OrientationAngled
Connector TypeCable Connector
Contact PlatingSilver
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating16A AC, 10A DC
Voltage Rating400V AC, 230V DC
Electrical NotesSee literature for derating curves
Degree of Ingress ProtectionIP65, IP67
EMC Shielding CapabilityNo
Gender of InsertFemale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemScrew
Min. Mechanical Mating Cycles50
Max. Wire Gauge/Cross-Sectional Area2.50mm²
Min. Cable Entry (mm)6
Max. Cable Entry (mm)12
Number of Ways4
Operating Temperature-40 to +105°C
Positive Earth (PE)Yes
Termination Method/TechnologyScrew

About this Series

Hirschmann logo

High-quality products for the automation industry, delivered at great value

In brief:

Robust multi-pin circular connector system with industry standard RD24 screw locking functionality.

CA connectors offer pin-counts of 4 and 7 with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 & IP67 ingress protection in mated state or with the use of a protection cover.

Hirschmann CA Series

Belden's Hirschmann CA series is a range of circular cable and panel connectors in 4 and 7 way variants which can be used in demanding environments.

The CA series offers users a low cost but robust system that can withstand the elements present in an industrial environment.

When mated, the connectors seal to IP65 & IP67 and therefore have a high degree of resistance to external influences such as water and industrial fluids.

Panel receptacles are available in both male and female gender with optional protection cap to remain sealed in unmated state.

Cable connectors are available in male and female gender and in straight or angled orientation and can be coupled with either a panel receptacle or another cable connector if the opposite gender to provide an in-line connection.

Key features include:

  • Available in 4 & 7 way versions
  • Provides reliable transmission properties even under high stress
  • High degree of resistance to external influences
  • Easy installation due to few components
  • Protection class up to IP67

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
