Hirschmann / CA Series

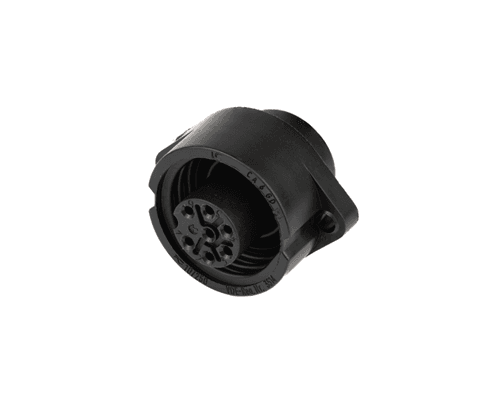

7 Way (6+PE) Female Flanged Panel Connector with Solder Contacts, IP65 & IP67 (CA 6 GD)

932325100 thumbnail
Image may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number932325100
Product TypeConnector
Connector SeriesCA
Connector TypePanel/Wall Mount Connector
ApprovalsUL, CSA, VDE
Backshell IncludedNo
Body OrientationStraight
Contact PlatingSilver
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating10A AC/DC
Voltage Rating230V
Electrical NotesSee literature for derating curves
Degree of Ingress ProtectionIP65, IP67
EMC Shielding CapabilityNo
Gender of InsertFemale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemScrew
Mating Cycles50
Max. Wire Gauge/Cross-Sectional Area0.75mm²
Min. Cable Entry (mm)NA
Max. Cable Entry (mm)NA
Number of Ways7
Operating Temperature-40 to +105°C
Temperature RangeSolder

About this Series

Hirschmann logo

High-quality products for the automation industry, delivered at great value

In brief:

Robust universal circular connector with IP67 environmental protection.

The Hirschmann CA series is a genuine all-rounder and is used in a wide variety of applications including areas of hydraulics and pneumatics, machine building and automation control technology.

Available in a 4 pole (3+PE) screw termination and 7 pole (6+PE) solder cup options, the Hirschmann CA is a hugely popular series for users looking for a simple, reliable and cost effective solution that can be used in harsh environments.

The Hirschmann CA series is a range of circular cable and panel connectors in 4 and 7 pin variants which can be used in tough environments.

The CA series offers users a low cost but robust system that can withstand the elements present in an industrial environment.

The connectors when mated seal to IP67 and therefore have a high degree of resistance to external influences such as water and industrial fluids.

Panel receptacles are available in both male and female gender with optional protection cap to remain sealed in unmated state.

Cable connectors are available in male and female gender and in straight or angled orientation and can be coupled with either a panel receptacle or another cable connector if the opposite gender to provide an in-line connection.

Key features include:

  • Available in 4 & 7 pin variants
  • Provides reliable transmission properties even under high stress
  • High degree of resistance to external influences
  • Easy installation due to few components
  • Protection class up to IP67

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
