Sales Description

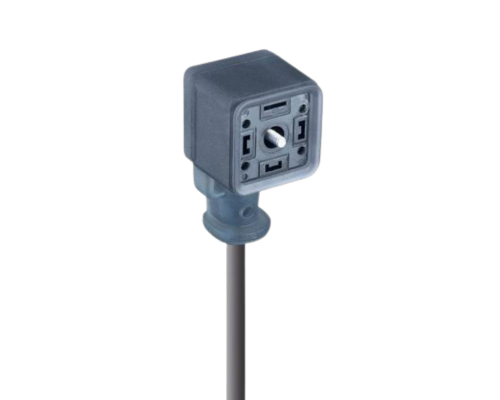

Got a question about this product?Robust multi-pin rectangular connector system with industry standard EN 175301-803 (formerly DIN 43650) central screw locking interface.
Valve connectors offer pin-counts of 3 (2+PE) and 4 (3+PE) with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 ingress protection in mated state.
Technical Specification
- Approvals UL, VDE
- Cable Assembly Type Single Ended
- Cable Jacket Colour Grey
- Cable Jacket Material PVC
- Cable Length 2m
- Cable Operating Temperature -40 to +90°C (fixed), -5 to +90°C (flex)
- Conductor Gauge 0.75mm²
- Connector Operating Temperature -25 to +85°C
- Connector Type 1 4 Way Female
- Connector Type 2 NA
- Contact Plating Tin
- Coupling Area Material Plastic Face/Metal Screw
- Current Rating 10A
- Voltage Rating 230V
- Electrical Notes Notice Derating
- Degree of Ingress Protection IP65, IP67
- EMC Sheild No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Central Screw
- Min. Mechanical Mating Cycles 50
- Number of Conductors 4
- Positive Earth (PE) Yes
- Shell Type Cable Connector
