Sales Description

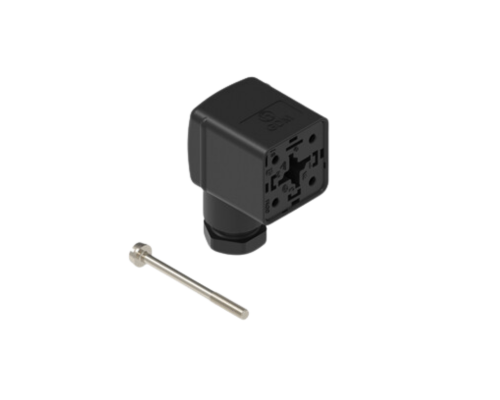

Got a question about this product?Robust multi-pin rectangular connector system with industry standard EN 175301-803 (formerly DIN 43650) central screw locking interface.
Valve connectors offer pin-counts of 3 (2+PE) and 4 (3+PE) with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 ingress protection in mated state.
Technical Specification
- Approvals VDE, SEV
- Backshell Included Yes
- Body Orientation Angled
- Connector Type Cable Connector
- Contact Plating Tin
- Contacts Included Yes
- Coupling Area Material Plastic Face/Metal Screw
- Current Rating 16A
- Voltage Rating 230V
- Electrical Notes Notice Derating
- Degree of Ingress Protection IP40
- EMC Sheilding Capability No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Central Screw
- Min. Mechanical Mating Cycles 50
- Max. Wire Gauge/Cross Sectional Area 1.50mm²
- Min. Cable Entry (mm) 4.5
- Max. Cable Entry (mm) 11
- Number of Ways 3
- Operating Temperature -40 to +125°C
- Positive Earth (PE) Yes
- Shell Size NA
- Termination Method/Technology Screw
