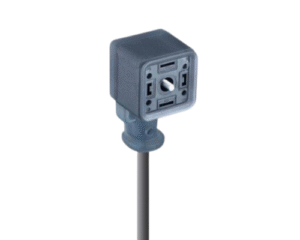

Hirschmann GDM Series (Valve Connectors)

These connectors are designed to meet the harsh demands of hard practical day-to-day work in every form. They are square or rectangular in shape and are commonly used on pneumatic, electro-magnetic and hydraulic actuators.

Various components can be built into the housings of valve connectors in instances where they have not been integrated into the application, including:

• Optical status displays
• Rectifiers
• Protective elements

Often used in industrial environments, the Hirschmann valve connector series is available in the three shell sizes A, B and C. These each include crimp, screw and solder termination.

As the long-standing series has evolved over the years so have the choice of profiles. Type-A connectors have just the one interface whereas Type-B and C have two standards/pin spacing options;

Type-A
EN 175301-803-A Standard (formerly DIN 43650)

Type-B
EN 175301-803-B Standard (formerly DIN 43650). Often referred to as 10mm pin spacing type.

Type-B
Industrial Standard (formerly NEMA standard). Often referred to as 11mm pin spacing type.

Type-C
EN 175301-803-C Standard (formerly DIN 43650). Often referred to as 8mm pin spacing type.

Type-C
Industrial Standard (formerly NEMA standard). Often referred to as 9.4mm pin spacing type.

A number of electronic components, including LED function indicators and rectifiers, are also available for the connectors, as well as the basic 2+PE an 3+PE field attachable versions.

Among the key features of these products are:

• 3 & 4 pin variants (including PE)
• Voltages up to 400V (type A), 250V (types B, C) & currents up to 16A
• Moulded and field attachable variations
• Large cable connection space, plus simple assembly
• International approvals VDE, UL, CSA, GL
• Various connection possibilities

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 3 & 4

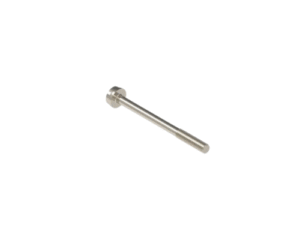

• Locking Mechanism: Central Screw
• Contact Termination: Screw, Crimp, Solder
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 4.5-14mm
• Connector Types: Cable to Panel
• Max. Voltage: 24-400V
• Max. Current: 1-16A
• Ingress Protection Max: IP65
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

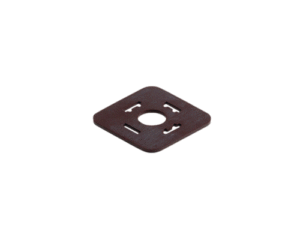

Additional accessories may also be required to maintain IP rating in some instances
