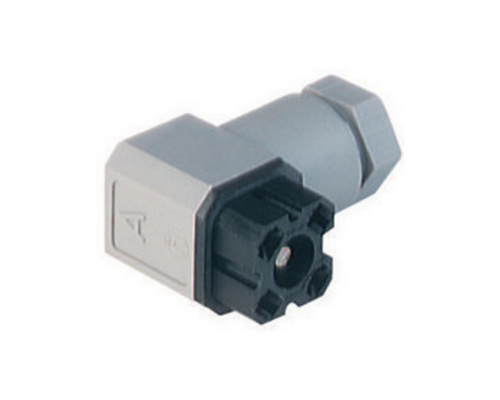

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin rectangular connector system with central screw locking functionality.
G Series connectors offer pin-counts from 2 to 17 with a current carrying capacity of up to 10A per contact.
The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 1.00mm² and is capable of offering IP65 ingress protection in mated state.
Technical Specification
- Approvals VDE
- Backshell Included Yes
- Body Orientation Angled
- Connector Type Cable Connector
- Contact Plating Tin
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 6A
- Voltage Rating 50V AC/DC
- Electrical Notes As per DIN EN 60664-1 (2008/01), VDE 0110-1
- Degree of Ingress Protection IP65
- EMC Sheilding Capability No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Central Screw
- Min. Mechanical Mating Cycles 50
- Max. Wire Gauge/Cross Sectional Area 0.50mm²
- Min. Cable Entry (mm) 3.5
- Max. Cable Entry (mm) 6
- Number of Ways 4
- Operating Temperature -40 to +90°C
- Positive Earth (PE) No
- Termination Method/Technology Solder
