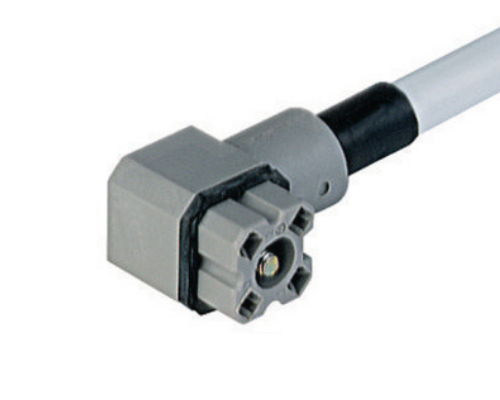

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin rectangular connector system with central screw locking functionality.
G Series connectors offer pin-counts from 2 to 17 with a current carrying capacity of up to 10A per contact.
The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 1.00mm² and is capable of offering IP65 ingress protection in mated state.
Technical Specification
- Approvals VDE
- Cable Assembly Type Single Ended
- Cable Jacket Colour Grey
- Cable Jacket Material PVC
- Cable Length 3m
- Cable Operating Temperature -5 to +70°C (dynamic), -40 to +70°C (static)
- Conductor Gauge 1.00mm²
- Connector Operating Temperature -40 to +90°C
- Connector Type 1 3 Way Female
- Connector Type 2 NA
- Contact Plating Tin
- Coupling Area Material Plastic
- Current Rating 10A
- Voltage Rating 230V AC/DC
- Electrical Notes As per DIN EN 60664-1 (2008/01), VDE 0110-1
- Degree of Ingress Protection IP65
- EMC Sheild No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Central Screw
- Min. Mechanical Mating Cycles 50
- Number of Conductors 3
- Positive Earth (PE) Yes
- Ripcord Cable Connector
- Size NW VDE
