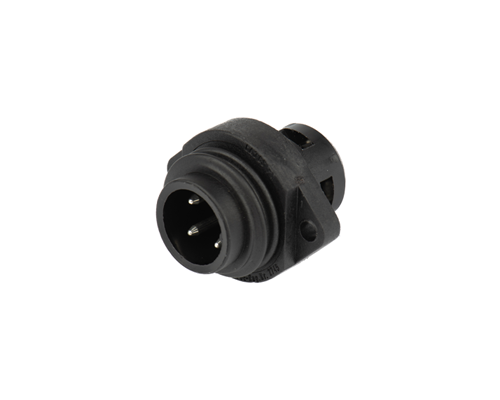

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin circular connector system with industry standard RD24 screw locking functionality.
CA connectors offer pin-counts of 4 and 7 with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 2.50mm² and is capable of offering IP65 & IP67 ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals UL, CSA, VDE
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating Silver
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 16A AC, 10A DC
- Voltage Rating 400V AC, 230V DC
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP65, IP67
- EMC Sheilding Capability No
- Gender of Insert Male
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 50
- Max. Wire Gauge/Cross Sectional Area 2.50mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 4
- Operating Temperature -40 to +105°C
- Positive Earth (PE) Yes
- Termination Method/Technology Screw
