HARTING T1 Industrial Series

HARTING T1 Industrial is more than just a new connector – and single-pair Ethernet (SPE) is more than just a new cable.

The internationally standardised mating face is part of a complete system for TCP/IP-based connection of sensors to Ethernet networks.

Conceptually designed for high bandwidths for data rates from 10 Mbit/s to gigabit SPE and demanding industrial environments within Integrated Industry.

This means that SPE can offer the necessary infrastructure for the entire IIoT ecosystem.

Single-pair Ethernet (SPE) is an ideal medium for making the field level “intelligent”, i.e. ensuring the implementation of TCP/IP-based communication right into the sensor/actuator network. This makes Integrated Industry possible, which uses continuous barrier-free communication from the sensor to the cloud.

Device technology and sensor technology are getting smaller and smaller. With the new SPE interface – standardised according to IEC 63171-6 (previously IEC61076-3-125) –, HARTING offers a solution to the challenges of miniaturisation.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please click the ‘Quick Quote’ button and complete the form or simply call us on 01744 815001.

• No. of Contacts: 2
• Locking Mechanism: Latch

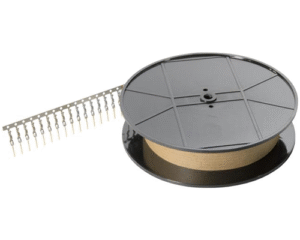

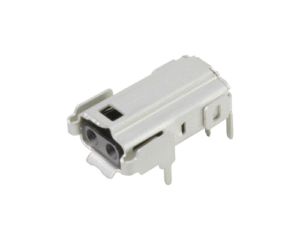

• Termination: Crimp, SMT (Reflow), Moulded
• Max. Transmission Rate: 10 Gbit/s
• Max. Voltage: 60V
• Max. Current: 4A

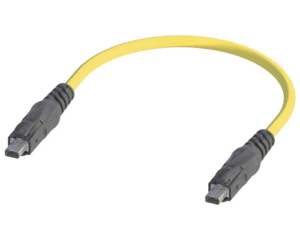

• Standard Cable Lengths: 0.5-20m
• Ingress Protection: IP20

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
