The waterproof robust circular M23 Power connector series from HARTING is ideal for use in tough environments.
Sealed to IP67 and IP69K in mated condition, the M23 system provides a ruggedised sealed connection at all times, while pin counts are available in a range from 6 to 19 and the current carrying capacity stands at 28A.
A number of cable clamping ranges are available, while cable connectors come in both straight and angled orientation. Both rear and front mount options are available for the panel connectors, both with or without built-in rear cable strain relief.
Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (ComLock)
- Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 7-17mm
- Max. Voltage: 160-600V
- Max. Current: 8-28A
- Ingress Protection: IP67, IP69K
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The waterproof robust circular M23 Power connector series from HARTING is ideal for use in tough environments.
Sealed to IP67 and IP69K in mated condition, the M23 system provides a ruggedised sealed connection at all times, while pin counts are available in a range from 6 to 19 and the current carrying capacity stands at 28A.
A number of cable clamping ranges are available, while cable connectors come in both straight and angled orientation. Both rear and front mount options are available for the panel connectors, both with or without built-in rear cable strain relief.
Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (ComLock)
- Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 7-17mm
- Max. Voltage: 160-600V
- Max. Current: 8-28A
- Ingress Protection: IP67, IP69K
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

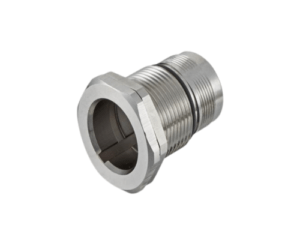

0915 600 0308
M23 (Power & Hybrid) Jam-Nut Panel Connector Shell, Male Locking Thread, Screw Locking & ComLock Compatible, IP67 & IP69K

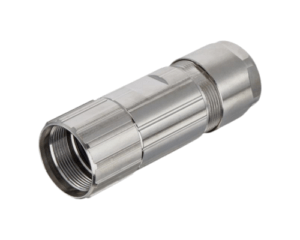

0915 600 0401
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Thread, 3-7mm Straight Cable Entry, Shieldable, IP67 & IP69K

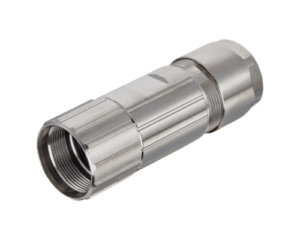

0915 600 0402
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Thread, 7-12mm Straight Cable Entry, Shieldable, IP67 & IP69K

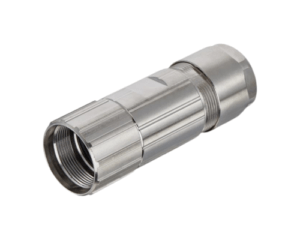

0915 600 0403
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Thread, 11-17mm Straight Cable Entry, Shieldable, IP67 & IP69K

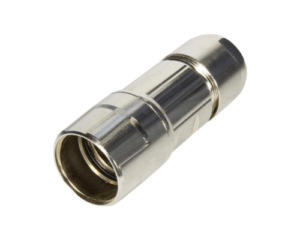

0915 600 0492
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Area, 7-12mm Straight Cable Entry, Shieldable, ComLock Locking, IP67 & IP69K

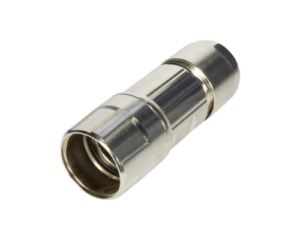

0915 600 0493
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Area, 11-17mm Straight Cable Entry, Shieldable, ComLock Locking, IP67 & IP69K

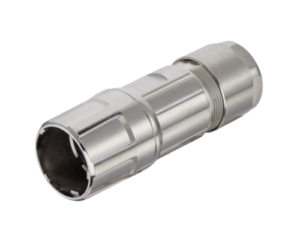

0915 600 0482
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Area, 7-12mm Straight Cable Entry, Shieldable, ComLock-S Locking, IP67 & IP69K

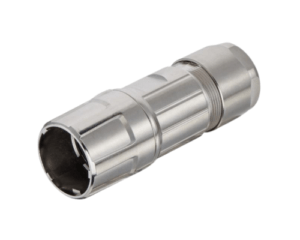

0915 600 0483
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Area, 11-17mm Straight Cable Entry, Shieldable, ComLock-S Locking, IP67 & IP69K

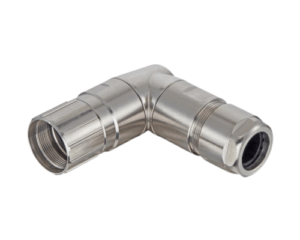

0915 600 0603
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Thread, 7-12mm Angled Cable Entry, Shieldable, IP67 & IP69K

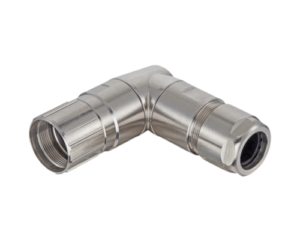

0915 600 0604
M23 (Power & Hybrid) Cable Connector Shell, Female Locking Thread, 11-17mm Angled Cable Entry, Shieldable, IP67 & IP69K

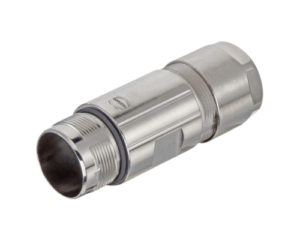

0915 600 0702
M23 (Power & Hybrid) Cable Connector Shell, Male Locking Thread, 7-12mm Straight Cable Entry, Shieldable, Screw Locking & ComLock Compatible, IP67 & IP69K
0915 600 0703
M23 (Power & Hybrid) Cable Connector Shell, Male Locking Thread, 11-17mm Straight Cable Entry, Shieldable, Screw Locking & ComLock Compatible, IP67 & IP69K

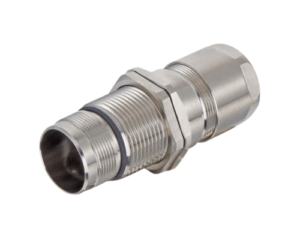

0915 600 0310
M23 (Signal) Jam-Nut Panel Feedthrough Connector Shell, Male Locking Thread, 7-12mm Straight Cable Entry, Shieldable, Screw Locking & ComLock Compatible, IP67 & IP69K
0915 600 0311
M23 (Signal) Jam-Nut Panel Feedthrough Connector Shell, Male Locking Thread, 11-17mm Straight Cable Entry, Shieldable, Screw Locking & ComLock Compatible, IP67 & IP69K
0915 606 3001
6 Way M23 (Power & Hybrid) Male Insert for Pin Contacts
0915 606 3101
6 Way M23 (Power & Hybrid) Female Insert for Socket Contacts
0915 608 3001
8 Way M23 (Power & Hybrid) Male Insert for Pin Contacts

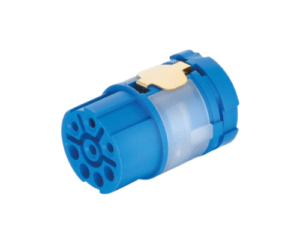

0915 608 3101
8 Way M23 (Power & Hybrid) Female Insert for Socket Contacts

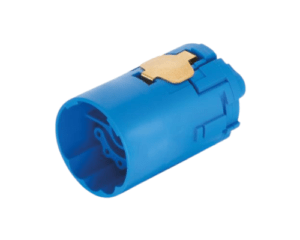

0915 609 3001
9 Way M23 (Power & Hybrid) Male Insert for Pin Contacts

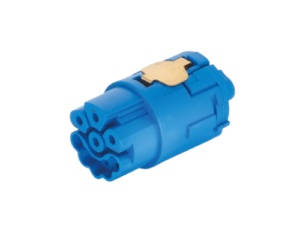

0915 609 3101
9 Way M23 (Power & Hybrid) Female Insert for Socket Contacts

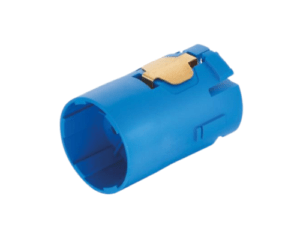

0915 609 3011
9 Way M23 (Power & Hybrid) Male Insert for Pin Contacts

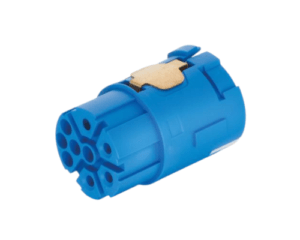

0915 609 3111
9 Way M23 (Power & Hybrid) Female Insert for Socket Contacts
0915 612 3001
12 Way M23 (Power & Hybrid) Male Insert for Pin Contacts

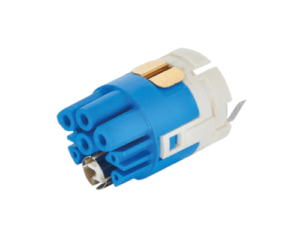

0915 612 3101
12 Way M23 (Power & Hybrid) Female Insert for Socket Contacts
