The waterproof robust circular M23 Power connector series from HARTING is ideal for use in tough environments.
Sealed to IP67 and IP69K in mated condition, the M23 system provides a ruggedised sealed connection at all times, while pin counts are available in a range from 6 to 19 and the current carrying capacity stands at 28A.
A number of cable clamping ranges are available, while cable connectors come in both straight and angled orientation. Both rear and front mount options are available for the panel connectors, both with or without built-in rear cable strain relief.
Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (ComLock)
- Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 7-17mm
- Max. Voltage: 160-600V
- Max. Current: 8-28A
- Ingress Protection: IP67, IP69K
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The waterproof robust circular M23 Power connector series from HARTING is ideal for use in tough environments.
Sealed to IP67 and IP69K in mated condition, the M23 system provides a ruggedised sealed connection at all times, while pin counts are available in a range from 6 to 19 and the current carrying capacity stands at 28A.
A number of cable clamping ranges are available, while cable connectors come in both straight and angled orientation. Both rear and front mount options are available for the panel connectors, both with or without built-in rear cable strain relief.
Inventory levels can be effectively reduced thanks to inserts, contacts and shells containing their own individual part numbers, which can also enable users to adjust the setup to meet their specific requirements.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (ComLock)
- Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 7-17mm
- Max. Voltage: 160-600V
- Max. Current: 8-28A
- Ingress Protection: IP67, IP69K
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

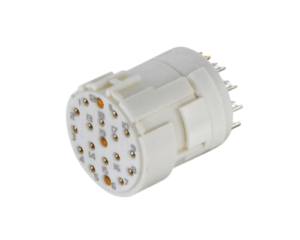

0915 119 2702
19 Way M23 (Signal) Female Insert with Solder Contacts

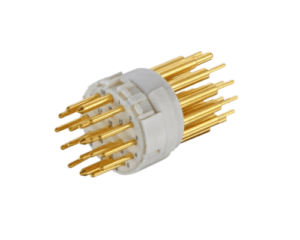

0915 119 2603
19 Way M23 (Signal) Male Insert with Solder Contacts

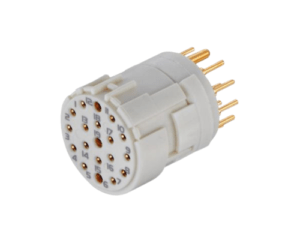

0915 119 2703
19 Way M23 (Signal) Female Insert with Solder Contacts
0915 100 6101
1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.08-0.56mm²
0915 100 6102
1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.14-1.00mm²
0915 100 6103
1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.75-1.50mm²
0915 100 6201
1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.08-0.56mm²
0915 100 6202
1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.34-1.00mm²
0915 100 6203
1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.75-1.50mm²
0915 100 6111
1.5mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.14-1.00mm²
0915 100 6211
1.5mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.14-0.56mm²
0915 100 6212
1.5mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.56-1.00mm²
0915 100 6121
2mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.75-2.50mm²
0915 100 6221
2mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.75-2.50mm²
0915 100 9101
Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, IP67 & IP69K
0915 100 9102
Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K
0915 100 9103
Protection Cover for Connectors with Female Locking Thread, with Fixing Rope, IP67 & IP69K
0915 100 9201
Flange Adapter for Straight Connectors
0999 000 0890
Crimp Tool
2137 330 0C70 050
12 Way M23 (Signal) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, Female Coupling Ring, IP67
2137 330 0C70 100
12 Way M23 (Signal) Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, Female Coupling Ring, IP67
2137 340 0C70 050
12 Way M23 (Signal) Cable Assembly, Angled Male to Open End, 5m Cable with Black PUR Jacket, Female Coupling Ring, IP67
2137 340 0C70 100
12 Way M23 (Signal) Cable Assembly, Angled Male to Open End, 10m Cable with Black PUR Jacket, Female Coupling Ring, IP67
2137 350 0C70 050
12 Way M23 (Signal) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67
