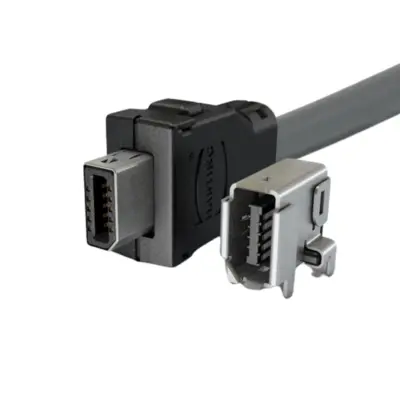

The ix Industrial® from HARTING is a miniature alternative to the RJ45.
Due to its excellent design and unrivalled performance it has quickly become an industry standard and a reliable interface for device manufacturers.
Until recently, the epitome for an Ethernet interface in an IP20 environment was the RJ45 connector.
The RJ45 connector is the most widely used in the world however many users have a love-hate relationship with it because of its weak latching levers and occasional contact difficulties.
As devices become smaller, the size of the RJ45 limits the miniaturisation potential and developers have been searching for a smaller and stronger connector and one that can cater for Cat. 6a performance for 1/10 Gbit/s Ethernet at the control level.
HARTING’s ix Industrial® connector series is an integrated system that meets all of these requirements.
Your advantages at a glance.
The ix Industrial® is HARTING’s answer to the challenges that are presented by Industry 4.0 and the IoT.
Successful miniaturisation ensures the HARTING ix Industrial® is a top performer in your application.
The ix Industrial® interface demonstrates its capabilities in Industrial Ethernet (type A) as well as in signals and serial BUS systems (type B).
- One standard, Two mating faces, Millions of possible applications
- 70% less size compared to the RJ45
- Robust socket with THR shield contacts
- Resistant to shock and vibration, designed for 5000 mating cycles
- Cat. 6A performance for 1/10 Gbit/s, PoE/PoE+ capability
- Two snap-in metal hooks ensure a safe and secure connection
- Continuous 360° shielding and robust cable attachment
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please click the ‘Quick Quote’ button and complete the form or simply call us on 01744 815001.
- No. of Contacts: 8 & 10
- Locking Mechanism: Latch
- Termination: SMT (Reflow), IDC, Moulded
- Transmission: Cat. 6A (Type-A Ethernet Version)
- Transmission Rate: 1/10 Gbit/s (Type-A Ethernet Version)
- Max. Voltage: 50V AC, 60V DC (Type-B Signal Version)
- Max. Current: 1.5-3A (Type-B Signal Version)
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
