HARTING har-port – service interface connectivity for USB and Ethernet.
Utilising an industry standard M22.5mm panel cut-out the HARTING har-port product range offers customers a selection of connectivity solutions.
With the panel cut out requirements being in line with that used by many other major switch and indicator suppliers, ease of manufacturing of any metal work is guaranteed.
Connection to the internal electronics can be achieved by either the use of an individual HARTING patch lead or by the selection of the har-port variant with an integral pre-terminated cable.
The standard product is IP20 rated but with the addition of a protection cover (available in two styles) IP65/67 can be achieved. A sealing cover for dust protection and a label holder are also available to complete the range of accessories on offer for the HARTING har-port product family.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- Type: USB (2.0 A&B, 3.0 A), RJ45
- Locking Mechanism: Latch
- Panel Cut-Out: Standard 22mm
- Panel Thickness: 1-5mm
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20, IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING har-port – service interface connectivity for USB and Ethernet.
Utilising an industry standard M22.5mm panel cut-out the HARTING har-port product range offers customers a selection of connectivity solutions.
With the panel cut out requirements being in line with that used by many other major switch and indicator suppliers, ease of manufacturing of any metal work is guaranteed.
Connection to the internal electronics can be achieved by either the use of an individual HARTING patch lead or by the selection of the har-port variant with an integral pre-terminated cable.
The standard product is IP20 rated but with the addition of a protection cover (available in two styles) IP65/67 can be achieved. A sealing cover for dust protection and a label holder are also available to complete the range of accessories on offer for the HARTING har-port product family.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- Type: USB (2.0 A&B, 3.0 A), RJ45
- Locking Mechanism: Latch
- Panel Cut-Out: Standard 22mm
- Panel Thickness: 1-5mm
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20, IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
0945 452 1912
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 1.5m Cable with Male USB Type-B 2.0, IP20
0945 452 1913
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 2m Cable with Male USB Type-B 2.0, IP20

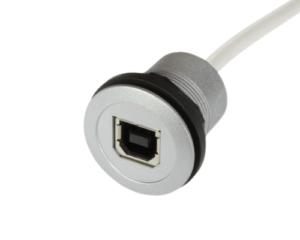

0945 452 1914
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 3m Cable with Male USB Type-B 2.0, IP20
0945 452 1916
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 4m Cable with Male USB Type-B 2.0, IP20
0945 452 1915
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 5m Cable with Male USB Type-B 2.0, IP20
0945 452 1930
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 0.5m Cable with Male USB Type-A 3.0, IP20
0945 452 1931
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 1m Cable with Male USB Type-A 3.0, IP20
0945 452 1932
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 1.5m Cable with Male USB Type-A 3.0, IP20
0945 452 1933
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 2m Cable with Male USB Type-A 3.0, IP20
0945 452 1934
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 3m Cable with Male USB Type-A 3.0, IP20
0945 452 1970
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 0.5m Cable with Male USB Type-A 3.0, IP20
0945 452 1971
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 1m Cable with Male USB Type-A 3.0, IP20
0945 452 1972
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 1.5m Cable with Male USB Type-A 3.0, IP20
0945 452 1973
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 2m Cable with Male USB Type-A 3.0, IP20
0945 452 1974
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to 3m Cable with Male USB Type-A 3.0, IP20
0945 452 1940
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-Mini-B 2.0 to 0.5m Cable with Male USB Type-A 2.0, IP20
0945 452 1000
Har-Port Jam-Nut Panel Connector with Integrated Female 3.5mm Audio Jack to 1m Cable with Male 3.5mm Audio Plug, IP20
0945 452 1001
Har-Port Jam-Nut Panel Connector with Integrated Female 3.5mm Audio Jack to 2m Cable with Male 3.5mm Audio Plug, IP20

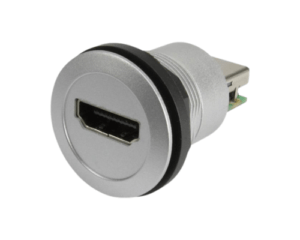

0945 452 1010
Har-Port Jam-Nut Panel Connector with Integrated Female HDMI to Female HDMI Coupler, IP20
0945 502 0000
Har-Port Protection Cover, IP65 & IP67
0945 502 0001
Har-Port Security Cover, IP40
0945 502 0002
Har-Port Label Holder
0945 502 0003
Har-Port Self-Adhesive Label
0945 502 0004
Har-Port Blanking Plug, IP65 & IP67
