HARTING har-port – service interface connectivity for USB and Ethernet.
Utilising an industry standard M22.5mm panel cut-out the HARTING har-port product range offers customers a selection of connectivity solutions.
With the panel cut out requirements being in line with that used by many other major switch and indicator suppliers, ease of manufacturing of any metal work is guaranteed.
Connection to the internal electronics can be achieved by either the use of an individual HARTING patch lead or by the selection of the har-port variant with an integral pre-terminated cable.
The standard product is IP20 rated but with the addition of a protection cover (available in two styles) IP65/67 can be achieved. A sealing cover for dust protection and a label holder are also available to complete the range of accessories on offer for the HARTING har-port product family.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- Type: USB (2.0 A&B, 3.0 A), RJ45
- Locking Mechanism: Latch
- Panel Cut-Out: Standard 22mm
- Panel Thickness: 1-5mm
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20, IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING har-port – service interface connectivity for USB and Ethernet.
Utilising an industry standard M22.5mm panel cut-out the HARTING har-port product range offers customers a selection of connectivity solutions.
With the panel cut out requirements being in line with that used by many other major switch and indicator suppliers, ease of manufacturing of any metal work is guaranteed.
Connection to the internal electronics can be achieved by either the use of an individual HARTING patch lead or by the selection of the har-port variant with an integral pre-terminated cable.
The standard product is IP20 rated but with the addition of a protection cover (available in two styles) IP65/67 can be achieved. A sealing cover for dust protection and a label holder are also available to complete the range of accessories on offer for the HARTING har-port product family.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- Type: USB (2.0 A&B, 3.0 A), RJ45
- Locking Mechanism: Latch
- Panel Cut-Out: Standard 22mm
- Panel Thickness: 1-5mm
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20, IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

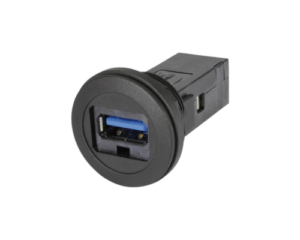

0945 452 1904
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 3.0 to Female USB Type-A 3.0 Shielded Coupler, IP20
0945 452 1927
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 0.15m Cable with Male USB Type-A 2.0, IP20
0945 452 1928
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 0.4m Cable with Male USB Type-A 2.0, IP20
0945 452 1920
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 0.5m Cable with Male USB Type-A 2.0, IP20

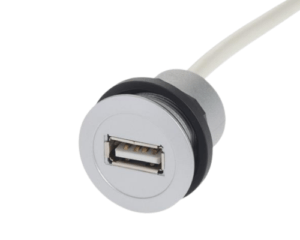

0945 452 1921
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 1m Cable with Male USB Type-A 2.0, IP20
0945 452 1922
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 1.5m Cable with Male USB Type-A 2.0, IP20
0945 452 1923
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 2m Cable with Male USB Type-A 2.0, IP20
0945 452 1924
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 3m Cable with Male USB Type-A 2.0, IP20
0945 452 1926
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 4m Cable with Male USB Type-A 2.0, IP20
0945 452 1925
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 5m Cable with Male USB Type-A 2.0, IP20
0945 452 1960
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 0.5m Cable with Male USB Type-A 2.0, IP20
0945 452 1961
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 1m Cable with Male USB Type-A 2.0, IP20
0945 452 1962
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 1.5m Cable with Male USB Type-A 2.0, IP20

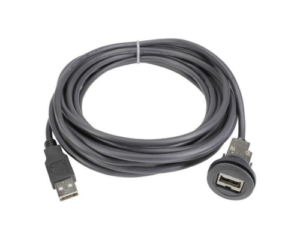

0945 452 1963
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 2m Cable with Male USB Type-A 2.0, IP20
0945 452 1964
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 3m Cable with Male USB Type-A 2.0, IP20
0945 452 1965
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-A 2.0 to 5m Cable with Male USB Type-A 2.0, IP20
0945 452 1950
Har-Port Jam-Nut Panel Connector with 2 x Integrated Female USB Type-A 2.0 to 0.5m Cable with 2 x Male USB Type-A 2.0, IP20
0945 452 1951
Har-Port Jam-Nut Panel Connector with 2 x Integrated Female USB Type-A 2.0 to 1m Cable with 2 x Male USB Type-A 2.0, IP20
0945 452 1952
Har-Port Jam-Nut Panel Connector with 2 x Integrated Female USB Type-A 2.0 to 1.5m Cable with 2 x Male USB Type-A 2.0, IP20
0945 452 1953
Har-Port Jam-Nut Panel Connector with 2 x Integrated Female USB Type-A 2.0 to 2m Cable with 2 x Male USB Type-A 2.0, IP20
0945 452 1954
Har-Port Jam-Nut Panel Connector with 2 x Integrated Female USB Type-A 2.0 to 3m Cable with 2 x Male USB Type-A 2.0, IP20
0945 452 1955
Har-Port Jam-Nut Panel Connector with 2 x Integrated Female USB Type-A 2.0 to 5m Cable with 2 x Male USB Type-A 2.0, IP20

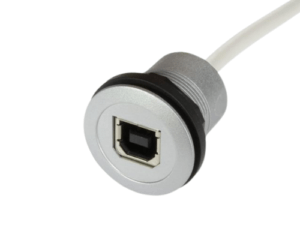

0945 452 1910
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 0.5m Cable with Male USB Type-B 2.0, IP20
0945 452 1911
Har-Port Jam-Nut Panel Connector with Integrated Female USB Type-B 2.0 to 1m Cable with Male USB Type-B 2.0, IP20
