HARTING Han® industrial connectors provide a safe and reliable electrical connection in harsh industrial environments.
The Han® series offers pin counts from 4-216 and is capable of 10-100A.
The system comprises of solid multi-way inserts locked inside a robust metal shell with termination methods including crimp, screw, cage clamp and IDC.
Cable hoods and panel housings are available with single or double lever locking mechanism and have a multitude of options to tailor them for a particular environment including corrosion resistant surfaces.
Cable hoods offer both straight and angled entry and a variety of gland sizes.
Panel housings are available in either the standard through panel wiring setup (bulkhead) and also as a fixed surface mount shell for wiring from the side.
Northern Connectors have helped to design HARTING Han® series into many applications over the years and our experienced technical staff often help guide electrical engineers in composing a suitable bill of materials from the extensive variety of options.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-216
- Locking Mechanism: Lever, Toggle, Screw
- Contact Termination: Crimp, Screw, Quick-Lock, Axial Screw, Cage Clamp, IDC
- Wire Gauge Max: 35.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-830V
- Max. Current: 10-100A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING Han® industrial connectors provide a safe and reliable electrical connection in harsh industrial environments.
The Han® series offers pin counts from 4-216 and is capable of 10-100A.
The system comprises of solid multi-way inserts locked inside a robust metal shell with termination methods including crimp, screw, cage clamp and IDC.
Cable hoods and panel housings are available with single or double lever locking mechanism and have a multitude of options to tailor them for a particular environment including corrosion resistant surfaces.
Cable hoods offer both straight and angled entry and a variety of gland sizes.
Panel housings are available in either the standard through panel wiring setup (bulkhead) and also as a fixed surface mount shell for wiring from the side.
Northern Connectors have helped to design HARTING Han® series into many applications over the years and our experienced technical staff often help guide electrical engineers in composing a suitable bill of materials from the extensive variety of options.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-216
- Locking Mechanism: Lever, Toggle, Screw
- Contact Termination: Crimp, Screw, Quick-Lock, Axial Screw, Cage Clamp, IDC
- Wire Gauge Max: 35.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-830V
- Max. Current: 10-100A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

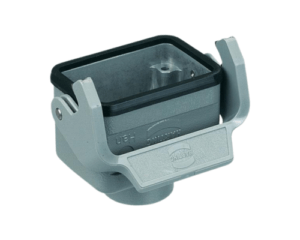

1930 006 1750
Han Size 6B In-Line Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Top Entry, Low Construction, Single Lever Locking, IP65

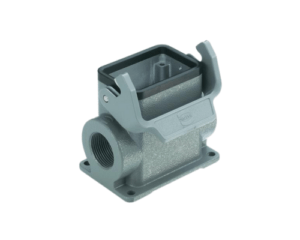

1930 006 0291
Han Size 6B Surface Mount Panel Connector Housing with 2 x M25 Threaded Cable Inlets, High Construction, Single Lever Locking, IP65

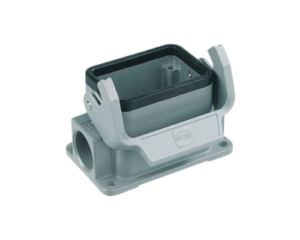

1930 006 1290
Han Size 6B Surface Mount Panel Connector Housing with 2 x M20 Threaded Cable Inlets, Low Construction, Single Lever Locking, IP65
1930 006 1250
Han Size 6B Surface Mount Panel Connector Housing with 1 x M20 Threaded Cable Inlet, Low Construction, Single Lever Locking, IP65

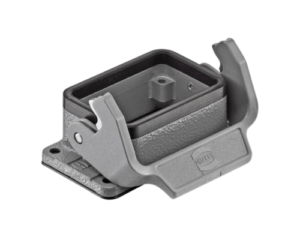

0930 006 0301
Han Size 6B Flanged Panel Connector Housing, Low Construction, Single Lever Locking, IP65
1930 006 0547
Han Size 6B Cable Connector Housing with 1 x M32 Threaded Cable Inlet, Side Entry, High Construction, Single Lever Locking, IP65, IP66 & IP67

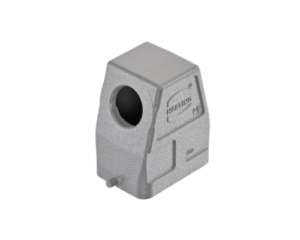

1930 006 0546
Han Size 6B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Side Entry, High Construction, Single Lever Locking, IP65, IP66 & IP67
1930 006 1541
Han Size 6B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Side Entry, Low Construction, Single Lever Locking, IP65, IP66 & IP67

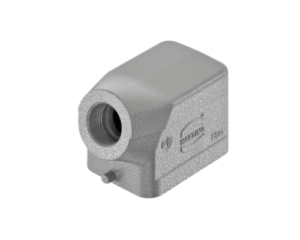

1930 006 1540
Han Size 6B Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Side Entry, Low Construction, Single Lever Locking, IP65, IP66 & IP67

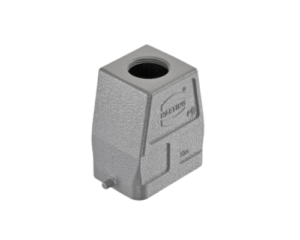

1930 006 0447
Han Size 6B Cable Connector Housing with 1 x M32 Threaded Cable Inlet, Top Entry, High Construction, Single Lever Locking, IP65, IP66 & IP67
1930 006 0446
Han Size 6B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, High Construction, Single Lever Locking, IP65, IP66 & IP67

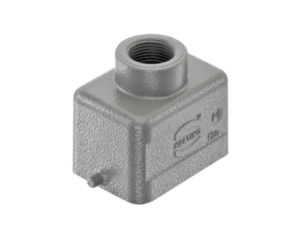

1930 006 1440
Han Size 6B Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Top Entry, Low Construction, Single Lever Locking, IP65, IP66 & IP67

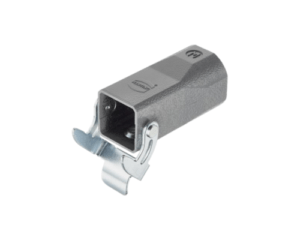

1920 003 1755
Han Size 3A In-Line Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, Single Lever Locking, IP44

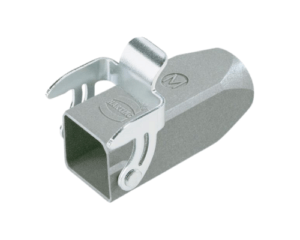

1920 003 1750
Han Size 3A In-Line Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Top Entry, Single Lever Locking, IP44

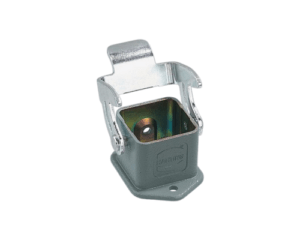

0920 003 0301
Han Size 3A Flanged Panel Connector Housing, Single Lever Locking, IP44
1920 003 1645
Han Size 3A Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Side Entry, Single Lever Locking, IP44

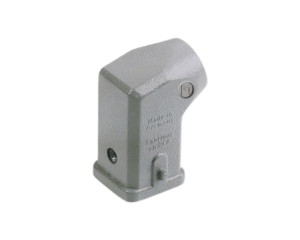

1920 003 1640
Han Size 3A Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Side Entry, Single Lever Locking, IP44

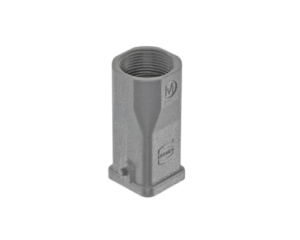

1920 003 1445
Han Size 3A Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, Single Lever Locking, IP44

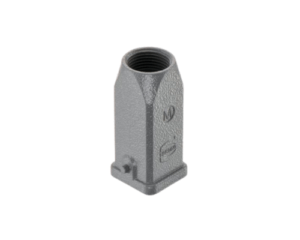

1920 003 1440
Han Size 3A Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Top Entry, Single Lever Locking, IP44
0920 004 2611
Han F&B 5 Way Male Insert with Screw Contacts
0920 004 2733
Han F&B 5 Way Female Insert with Quick-Lock Contacts
0920 004 2711
Han F&B 5 Way Female Insert with Screw Contacts
0920 004 2633
Han F&B 5 Way Male Insert with Quick-Lock Contacts
0933 000 6106
Han-E Crimp Pin Contact, Machined Construction, Silver Plating, 3.00mm²
