HARTING Han® industrial connectors provide a safe and reliable electrical connection in harsh industrial environments.
The Han® series offers pin counts from 4-216 and is capable of 10-100A.
The system comprises of solid multi-way inserts locked inside a robust metal shell with termination methods including crimp, screw, cage clamp and IDC.
Cable hoods and panel housings are available with single or double lever locking mechanism and have a multitude of options to tailor them for a particular environment including corrosion resistant surfaces.
Cable hoods offer both straight and angled entry and a variety of gland sizes.
Panel housings are available in either the standard through panel wiring setup (bulkhead) and also as a fixed surface mount shell for wiring from the side.
Northern Connectors have helped to design HARTING Han® series into many applications over the years and our experienced technical staff often help guide electrical engineers in composing a suitable bill of materials from the extensive variety of options.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-216
- Locking Mechanism: Lever, Toggle, Screw
- Contact Termination: Crimp, Screw, Quick-Lock, Axial Screw, Cage Clamp, IDC
- Wire Gauge Max: 35.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-830V
- Max. Current: 10-100A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING Han® industrial connectors provide a safe and reliable electrical connection in harsh industrial environments.
The Han® series offers pin counts from 4-216 and is capable of 10-100A.
The system comprises of solid multi-way inserts locked inside a robust metal shell with termination methods including crimp, screw, cage clamp and IDC.
Cable hoods and panel housings are available with single or double lever locking mechanism and have a multitude of options to tailor them for a particular environment including corrosion resistant surfaces.
Cable hoods offer both straight and angled entry and a variety of gland sizes.
Panel housings are available in either the standard through panel wiring setup (bulkhead) and also as a fixed surface mount shell for wiring from the side.
Northern Connectors have helped to design HARTING Han® series into many applications over the years and our experienced technical staff often help guide electrical engineers in composing a suitable bill of materials from the extensive variety of options.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-216
- Locking Mechanism: Lever, Toggle, Screw
- Contact Termination: Crimp, Screw, Quick-Lock, Axial Screw, Cage Clamp, IDC
- Wire Gauge Max: 35.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-830V
- Max. Current: 10-100A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
1930 016 1422
Han Size 16B Cable Connector Housing with 1 x M32 Threaded Cable Inlet, Top Entry, Low Construction, Double Lever Locking, IP65, IP66, IP67

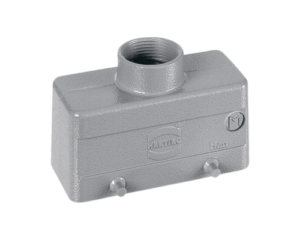

1930 016 1421
Han Size 16B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, Low Construction, Double Lever Locking, IP65, IP66, IP67
1930 010 0738
Han Size 10B In-Line Cable Connector Housing with 1 x M40 Threaded Cable Inlet, Top Entry, High Construction, Double Lever Locking, IP65
1930 010 0737
Han Size 10B In-Line Cable Connector Housing with 1 x M32 Threaded Cable Inlet, Top Entry, High Construction, Double Lever Locking, IP65

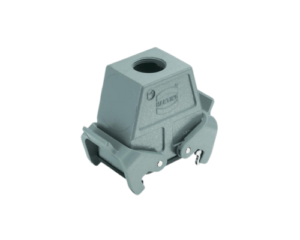

1930 010 0736
Han Size 10B In-Line Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, High Construction, Double Lever Locking, IP65

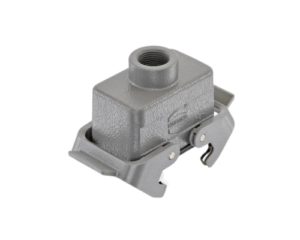

1930 010 1730
Han Size 10B In-Line Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Top Entry, Low Construction, Double Lever Locking, IP65
1930 010 0272
Han Size 10B Surface Mount Panel Connector Housing with 2 x M32 Threaded Cable Inlets, High Construction, Double Lever Locking, IP65
1930 010 0271
Han Size 10B Surface Mount Panel Connector Housing with 2 x M25 Threaded Cable Inlets, High Construction, Double Lever Locking, IP65

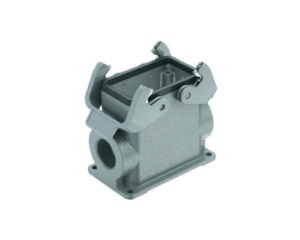

1930 010 0231
Han Size 10B Surface Mount Panel Connector Housing with 1 x M25 Threaded Cable Inlet, High Construction, Double Lever Locking, IP65
1930 010 1271
Han Size 10B Surface Mount Panel Connector Housing with 2 x M25 Threaded Cable Inlets, Low Construction, Double Lever Locking, IP65

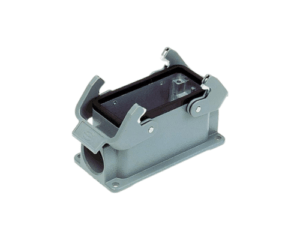

1930 010 1270
Han Size 10B Surface Mount Panel Connector Housing with 2 x M20 Threaded Cable Inlets, Low Construction, Double Lever Locking, IP65
1930 010 1231
Han Size 10B Surface Mount Panel Connector Housing with 1 x M25 Threaded Cable Inlet, Low Construction, Double Lever Locking, IP65
1930 010 1230
Han Size 10B Surface Mount Panel Connector Housing with 1 x M20 Threaded Cable Inlet, Low Construction, Double Lever Locking, IP65

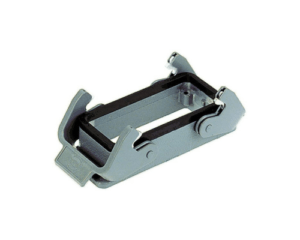

0930 010 0301
Han Size 10B Flanged Panel Connector Housing, Low Construction, Double Lever Locking, IP65

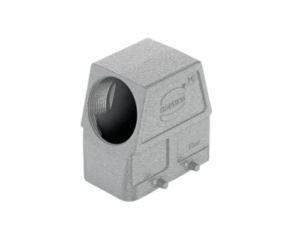

1930 010 0528
Han Size 10B Cable Connector Housing with 1 x M40 Threaded Cable Inlet, Side Entry, High Construction, Double Lever Locking, IP65, IP66, IP67

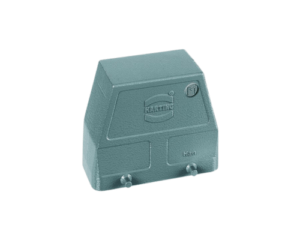

1930 010 0527
Han Size 10B Cable Connector Housing with 1 x M32 Threaded Cable Inlet, Side Entry, High Construction, Double Lever Locking, IP65, IP66, IP67
1930 010 0526
Han Size 10B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Side Entry, High Construction, Double Lever Locking, IP65, IP66, IP67
1930 010 1521
Han Size 10B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Side Entry, Low Construction, Double Lever Locking, IP65, IP66 & IP67

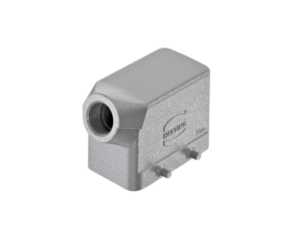

1930 010 1520
Han Size 10B Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Side Entry, Low Construction, Double Lever Locking, IP65, IP66 & IP67
1930 010 0428
Han Size 10B Cable Connector Housing with 1 x M40 Threaded Cable Inlet, Top Entry, High Construction, Double Lever Locking, IP65, IP66 & IP67

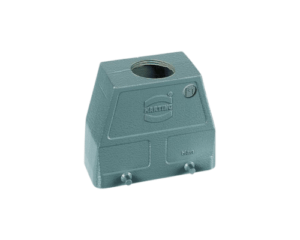

1930 010 0427
Han Size 10B Cable Connector Housing with 1 x M32 Threaded Cable Inlet, Top Entry, High Construction, Double Lever Locking, IP65, IP66 & IP67
1930 010 1421
Han Size 10B Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, Low Construction, Double Lever Locking, IP65, IP66, IP67

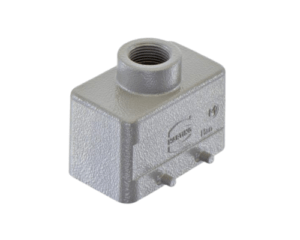

1930 010 1420
Han Size 10B Cable Connector Housing with 1 x M20 Threaded Cable Inlet, Top Entry, Low Construction, Double Lever Locking, IP65, IP66, IP67

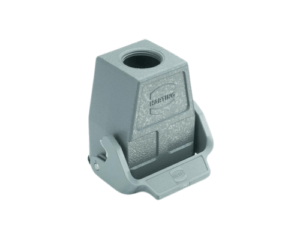

1930 006 0756
Han Size 6B In-Line Cable Connector Housing with 1 x M25 Threaded Cable Inlet, Top Entry, High Construction, Single Lever Locking, IP65
