HARTING Han-Compact® is a space‑saving industrial connector system designed to deliver reliable power, signal and data transmission where installation space is limited. As part of the proven Han® rectangular connector family, Han-Compact® combines the robustness required for harsh industrial environments with a significantly reduced form factor. This makes it an ideal choice for modern machine and equipment designs that demand high performance without compromising on panel space, weight or layout flexibility.
The system is based on a modular design concept, allowing different contact types such as power, signal and data to be combined within a single compact housing.
Despite its smaller size, Han-Compact® maintains the high mechanical stability, vibration resistance and ingress protection expected from HARTING connectors, with protection ratings up to IP65 or IP67 when correctly assembled. This ensures dependable operation in demanding applications involving dust, moisture, vibration or frequent mating cycles.
HARTING Han-Compact® connectors are widely used in industrial automation, robotics, machine building and control cabinet construction, where quick installation, easy maintenance and high connection density are essential. By reducing the number and size of connection interfaces, Han Compact helps streamline wiring, simplify assembly and support more compact, efficient machine designs – without sacrificing durability or electrical performance.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-18
- Locking Mechanism: Lever
- Contact Termination: Crimp, Quick-Lock, Axial Screw
- Wire Gauge Max: 10.00mm²
- Cable Diameter Range: 5-18mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-690V
- Max. Current: 5-40A
- Ingress Protection Max: IP65
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING Han-Compact® is a space‑saving industrial connector system designed to deliver reliable power, signal and data transmission where installation space is limited. As part of the proven Han® rectangular connector family, Han-Compact® combines the robustness required for harsh industrial environments with a significantly reduced form factor. This makes it an ideal choice for modern machine and equipment designs that demand high performance without compromising on panel space, weight or layout flexibility.
The system is based on a modular design concept, allowing different contact types such as power, signal and data to be combined within a single compact housing.
Despite its smaller size, Han-Compact® maintains the high mechanical stability, vibration resistance and ingress protection expected from HARTING connectors, with protection ratings up to IP65 or IP67 when correctly assembled. This ensures dependable operation in demanding applications involving dust, moisture, vibration or frequent mating cycles.
HARTING Han-Compact® connectors are widely used in industrial automation, robotics, machine building and control cabinet construction, where quick installation, easy maintenance and high connection density are essential. By reducing the number and size of connection interfaces, Han Compact helps streamline wiring, simplify assembly and support more compact, efficient machine designs – without sacrificing durability or electrical performance.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-18
- Locking Mechanism: Lever
- Contact Termination: Crimp, Quick-Lock, Axial Screw
- Wire Gauge Max: 10.00mm²
- Cable Diameter Range: 5-18mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-690V
- Max. Current: 5-40A
- Ingress Protection Max: IP65
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
0900 000 5047
Han-Compact PG16 Plastic Cable Connector Half-Gland, 6.5-9.5mm Cable Entry, IP65

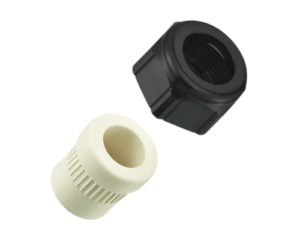

0900 000 5156
Han-Compact PG16 Plastic Cable Connector Half-Gland, 9-13mm Cable Entry, IP65

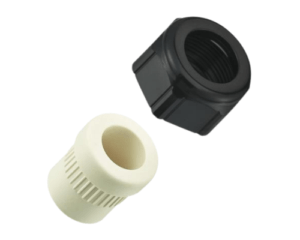

0900 000 5059
Han-Compact PG16 Plastic Cable Connector Half-Gland, 11.5-15.5mm Cable Entry, IP65

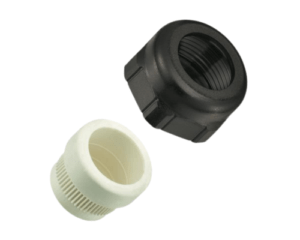

0900 000 5057
Han-Compact PG16 Plastic Surface Mount Connector Half-Gland, 6.5-9.5mm Cable Entry, IP65

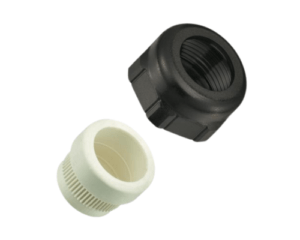

0900 000 5058
Han-Compact PG16 Plastic Surface Mount Connector Half-Gland, 11.5-15.5mm Cable Entry, IP65
0900 000 5157
Han-Compact PG21 Plastic Cable Connector Half-Gland, 14-18mm Cable Entry, IP65
0900 000 5158
Han-Compact PG21 Plastic Cable Connector Half-Gland, 17-20.5mm Cable Entry, IP65

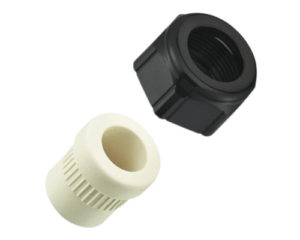

1912 000 5156
Han-Compact M25 Plastic Cable Connector Half-Gland, 6.5-9.5mm Cable Entry, IP65

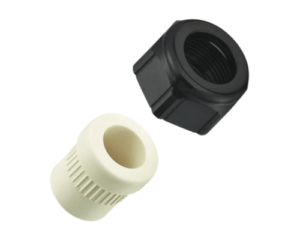

1912 000 5157
Han-Compact M25 Plastic Cable Connector Half-Gland, 10.5-14mm Cable Entry, IP65
1912 000 5158
Han-Compact M25 Plastic Cable Connector Half-Gland, 14-17mm Cable Entry, IP65

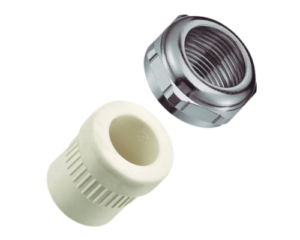

1912 000 5057
Han-Compact M25 Metal Cable Connector Half-Gland, 10.5-14mm Cable Entry, IP65

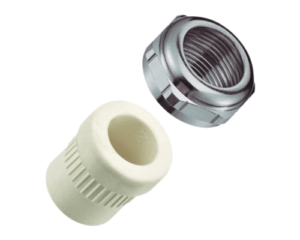

1912 000 5058
Han-Compact M25 Metal Cable Connector Half-Gland, 14-17mm Cable Entry, IP65
1962 000 5056
Han-Compact M25 Metal Cable Connector Half-Gland, 10.5-14mm Cable Entry, Shieldable, IP65
1962 000 5057
Han-Compact M25 Metal Cable Connector Half-Gland, 10.5-14mm Cable Entry, Shieldable, IP65
1962 000 5058
Han-Compact M25 Metal Cable Connector Half-Gland, 14-17mm Cable Entry, Shieldable, IP65
0900 000 5244
Han-Compact Replacement Lever, Black Plastic Version
0912 000 9911
Replacement Panel Sealing Gasket for Han-Compact Angled & Surface Mount Panel Connector

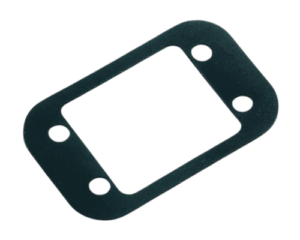

0912 000 9912
Replacement Panel Sealing Gasket for Han-Compact Panel Connector
0933 000 9954
Han-E Female Coding Contact
0999 000 0888
Crimp Tool
0999 000 0847
Assembly Tool
0999 000 0531
Crimp Tool Locator for D-Sub (Standard) Machined Contacts
0999 000 0501
Crimp Tool
0999 000 0377
Crimp Tool
