HARTING Han® 1A Series

Han® 1A, the smallest and latest addition to HARTING’s hugely successful portfolio of Han® industrial connectivity.

Increased miniaturisation in the machine/ facility construction sector is ever occurring in harsher industrial environments and compact, robust and versatile connectors are demanded.

The Han® 1A offers space savings of up to 30% compared to the also compact Han® 3A and caters for data, signal & power.

Han 1A is compact, robust, economical and modular and lends itself well to controllers, small drives and control cabinets.

The Han® 1A is a rectangular alternative to circular connectors and is robust and easy to install. It is ideally suited for connecting devices on the periphery of production facilities, as well as for supplying tools and smaller machine modules. Its Snap-in technology eliminates the need for a time-consuming screw connection.

Benefits at a glance:

• Uses up to 30% less space compared to Han® 3A: Compact connector for power that can be installed in the field
• Flexible in use: Transmits data, signals and power with up to twelve contacts
• Highly versatile: Modular system of inserts and accessories for indoor and outdoor applications (IP20/IP65)
• Less time required for installation: Fast connection using Snap-in technology – no screws required
• Minimum inventory needed: Clearly structured connector system based on a few basic components
• Reduced costs: Affordable installation

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001.

• No of Contacts: 3-12
• Locking Mechanism: Latch, Lever

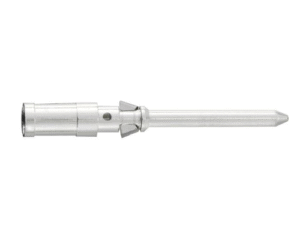

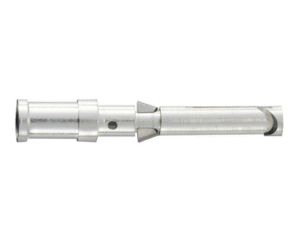

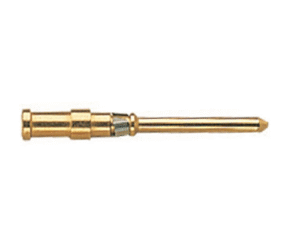

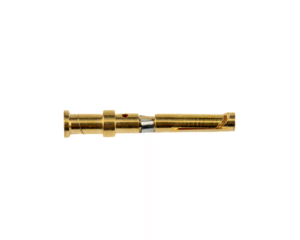

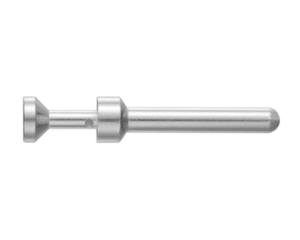

• Contact Termination: Crimp, Screw
• Wire Gauge Max: 4.00mm²
• Cable Diameter Range: 5.7-10mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 48-400V
• Max. Current: 0.5-16A
• Ingress Protection Max: IP20, IP65
• Moulded Cable Option: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
