With the D-Sub PushPull connector, HARTING introduces a groundbreaking evolution of the classic D-Sub connector. Featuring an innovative quick-locking mechanism, it allows for effortless handling and reliable connections in demanding environments. Experience a new level of efficiency and safety in your industrial applications.
Time-saving efficiency
Reduce installation and maintenance time with the new locking mechanism.
Quick-Locking mechanism
Effortless installation and secure connections with the innovative PushPull technology.
Upgrade capability
Seamlessly integrates with existing D-Sub systems.
Enhanced durability
Robust design ensures reliable performance in demanding environments.
Versatile application
Ideal for a range of industrial and technological settings.
Save up to 60% of your time!
Cut down on installation and maintenance time: Minimize downtime and maximize productivity with quick and simple connector engagement and disengagement. The secure connection reduces the risk of accidental disconnection, enhancing operational safety. Built to withstand the rigors of industrial use, ensuring dependable connections every time.

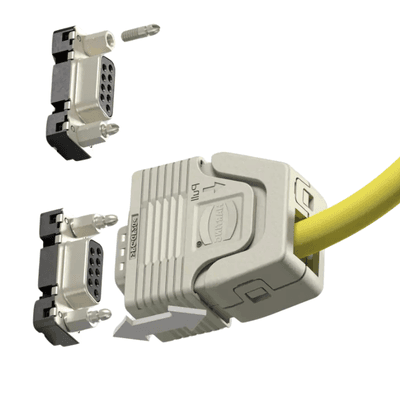

How to upgrade your existing D-Sub connections to PushPull
1. Simply screw in upgrade pins
Upgrade pins are your gateway to transforming traditional D-Sub connections into modern, PushPull-ready interfaces. Designed for effortless integration, these pins can be easily screwed into existing screw threads, instantly enhancing the functionality of your classic connectors.
2. Attach PushPull hood & connect
Complete the transformation by attaching the PushPull hood. This additional component enables quick-locking functionality, providing enhanced efficiency and reliability. Once upgraded, you can accelerate your installation and maintenance tasks, reducing downtime and enhancing productivity.
- Available in plastic and metalized plastic versions in sizes 1-3
- Tool-free installation with screwless assembly for simple connectivity
- Shock and vibration proof as per IEC 61373 – Category 1, Class B
- Compatible with HARTING coding system, offering up to 36 variations
- Suitable for D-Sub Standard, D-Sub mixed & D-Sub High-Density
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Sizes: 1-3
- Cable Entry Orientation: Variable
- Shell Material: Plastic, Metalized Plastic
- Locking Mechanism: PushPull
- Shell Assembly: Screwless
- Ingress Protection: IP30
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
