The quick-connect bayonet locking mechanism provides an audible and noticeable feedback to ensure the user that an IP67 watertight connection is made.
No further mounting tool is required to make this simple, fast & robust connection.
The product line includes a panel receptacle for PCB installation or termination to a flexible circuit. The overall dimensions are compact and require a 12mm diameter panel cutout.
The preterminated patch cables with an overmoulded IP67 Mini USB Type-B plug & an overmoulded USB type-A are available in 2, 3 and 4.5m length.
The housings for the Type-A connectors have a bayonet latching mechanism according to the IEC 61076-3-106 standard. The housing can be mounted on the front or rear side of enclosure panels with thickness up to 3,2 mm. USB plug set with solder termination is available for cable side and there are also preassembled patch cords available in various IP protection grades and lengths.
The housings are available in plastic, metalised plastic and nickel plated zinc die-cast.
This robust design with IP67 rating ensures reliable protection and easy connection under harsh environmental conditions. Protective covers are available to keep IP67 protection when not in use.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: USB Type-A 2.0, USB Type-B 2.0, USB Mini Type-B 2.0, USB Type-A 3.0
- Locking Mechanism: Bayonet, Lever
- Termination: Dip-solder, Solder
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 3m, 4.5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The quick-connect bayonet locking mechanism provides an audible and noticeable feedback to ensure the user that an IP67 watertight connection is made.
No further mounting tool is required to make this simple, fast & robust connection.
The product line includes a panel receptacle for PCB installation or termination to a flexible circuit. The overall dimensions are compact and require a 12mm diameter panel cutout.
The preterminated patch cables with an overmoulded IP67 Mini USB Type-B plug & an overmoulded USB type-A are available in 2, 3 and 4.5m length.
The housings for the Type-A connectors have a bayonet latching mechanism according to the IEC 61076-3-106 standard. The housing can be mounted on the front or rear side of enclosure panels with thickness up to 3,2 mm. USB plug set with solder termination is available for cable side and there are also preassembled patch cords available in various IP protection grades and lengths.
The housings are available in plastic, metalised plastic and nickel plated zinc die-cast.
This robust design with IP67 rating ensures reliable protection and easy connection under harsh environmental conditions. Protective covers are available to keep IP67 protection when not in use.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: USB Type-A 2.0, USB Type-B 2.0, USB Mini Type-B 2.0, USB Type-A 3.0
- Locking Mechanism: Bayonet, Lever
- Termination: Dip-solder, Solder
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 3m, 4.5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
17-10002

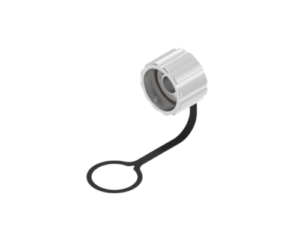

Plastic Protection Cover for RJ45/USB Panel Connector, with Fixing Rope, Bayonet Locking, IP67
17-10014
Metalised Plastic Protection Cover for RJ45/USB Panel Connector, with Fixing Rope, Bayonet Locking, IP67
17-101800

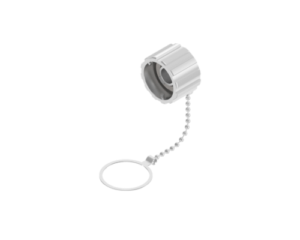

Metal Protection Cover for RJ45/USB Panel Connector, with Fixing Rope, Bayonet Locking, IP67
17-101710

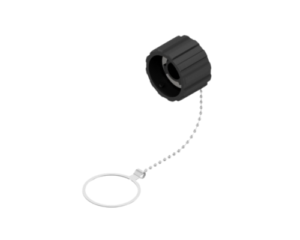

Plastic Protection Cover for RJ45/USB Panel Connector, with Fixing Rope, Bayonet Locking, IP67
17-101720

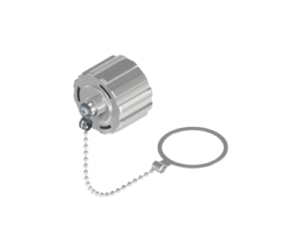

Metalised Plastic Protection Cover for RJ45/USB Panel Connector, with Fixing Rope, Bayonet Locking, IP67
