The CONEC Industrial RJ45 connector system has been developed to meet the requirements of harsh environments allowing ethernet networking technology to becoming industry capable.
The IP67 shells are designed to provide improved protection for the connector system, safeguarding against moisture and potential contamination. They also help to provide immunity from vibration, temperature resistance, greater mechanical stability and protection against EMI/RFI.
The popularity and versatility of these waterproof shells ensure they can be used for a wide variety of applications, including communications equipment, oil exploration, printers, food and chemical process controllers, industrial production, outdoor telecommunications systems, industrial process control and more.
Thanks to the shells bayonet latching mechanism, which complies with the IEC 61076-3-106 standard, they offer increased protection and a secure connection in the harshest environments.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: RJ45 – Cat. 5e / Cat. 6A
- Locking Mechanism: Bayonet, Lever
- Termination: Screw, Solder, IDC, Crimp
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 4m, 5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The CONEC Industrial RJ45 connector system has been developed to meet the requirements of harsh environments allowing ethernet networking technology to becoming industry capable.
The IP67 shells are designed to provide improved protection for the connector system, safeguarding against moisture and potential contamination. They also help to provide immunity from vibration, temperature resistance, greater mechanical stability and protection against EMI/RFI.
The popularity and versatility of these waterproof shells ensure they can be used for a wide variety of applications, including communications equipment, oil exploration, printers, food and chemical process controllers, industrial production, outdoor telecommunications systems, industrial process control and more.
Thanks to the shells bayonet latching mechanism, which complies with the IEC 61076-3-106 standard, they offer increased protection and a secure connection in the harshest environments.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: RJ45 – Cat. 5e / Cat. 6A
- Locking Mechanism: Bayonet, Lever
- Termination: Screw, Solder, IDC, Crimp
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 4m, 5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

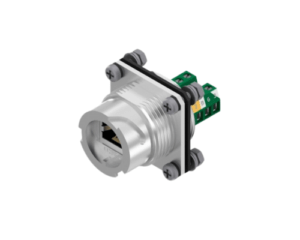

17-111144
Square Flanged Panel Connector with Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Screw Termination Terminal Block, Metal Shell, IP67
17-111194
Square Flanged Panel Connector with Protection Cover, Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Screw Termination Terminal Block, Metal Shell, IP67

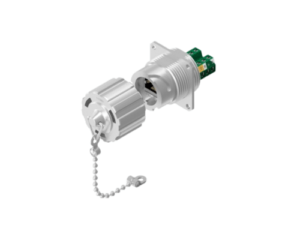

17-111204
Square Flanged Panel Connector with Protection Cover, Accessories & Integrated Female RJ45 Cat. 5e Shielded Jack to Screw Termination Terminal Block, Metal Shell, IP67
17-110264
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67

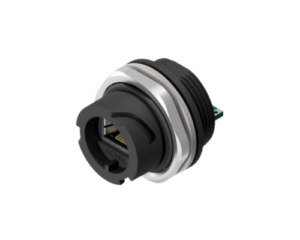

17-110324
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67
17-110754
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67

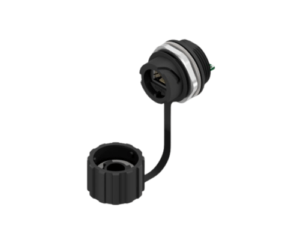

17-110814
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67
17-110384
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67
17-110394
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67
17-110874
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67

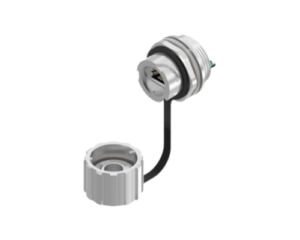

17-110884
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67
17-110404
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-110414
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

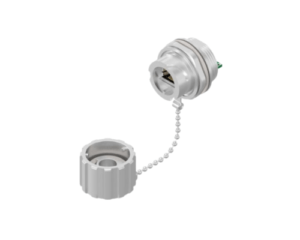

17-110894
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67
17-110904
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metal Shell, IP67

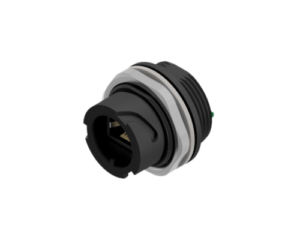

17-10017
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Black Plastic Shell, IP67

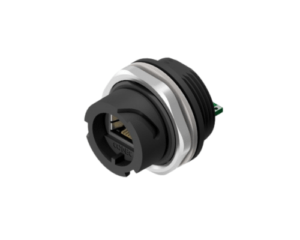

17-10035
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Black Plastic Shell, IP67

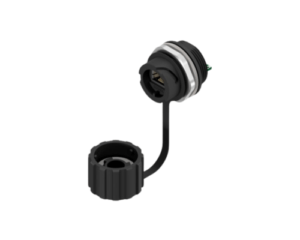

17-10023
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Black Plastic Shell, IP67

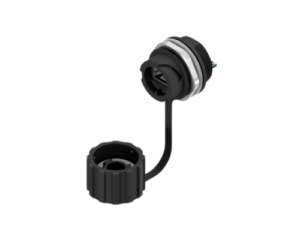

17-10039
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Black Plastic Shell, IP67

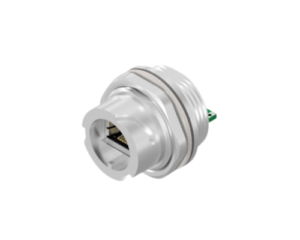

17-10018
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Metalised Plastic Shell, IP67

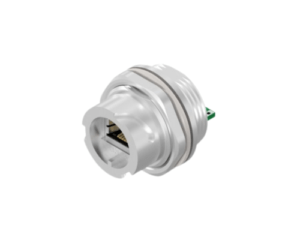

17-10036
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Metalised Plastic Shell, IP67

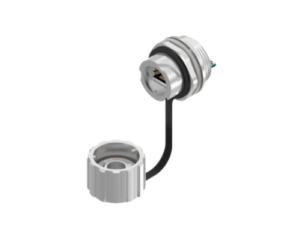

17-10024
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Metalised Plastic Shell, IP67

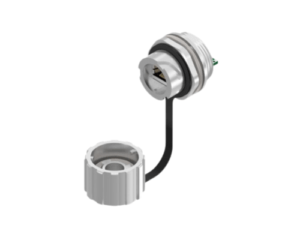

17-10040
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Metalised Plastic Shell, IP67

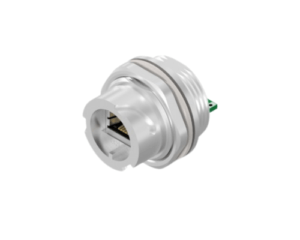

17-101784
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, Metal Shell, IP67
