The CONEC Industrial RJ45 connector system has been developed to meet the requirements of harsh environments allowing ethernet networking technology to becoming industry capable.
The IP67 shells are designed to provide improved protection for the connector system, safeguarding against moisture and potential contamination. They also help to provide immunity from vibration, temperature resistance, greater mechanical stability and protection against EMI/RFI.
The popularity and versatility of these waterproof shells ensure they can be used for a wide variety of applications, including communications equipment, oil exploration, printers, food and chemical process controllers, industrial production, outdoor telecommunications systems, industrial process control and more.
Thanks to the shells bayonet latching mechanism, which complies with the IEC 61076-3-106 standard, they offer increased protection and a secure connection in the harshest environments.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: RJ45 – Cat. 5e / Cat. 6A
- Locking Mechanism: Bayonet, Lever
- Termination: Screw, Solder, IDC, Crimp
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 4m, 5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
The CONEC Industrial RJ45 connector system has been developed to meet the requirements of harsh environments allowing ethernet networking technology to becoming industry capable.
The IP67 shells are designed to provide improved protection for the connector system, safeguarding against moisture and potential contamination. They also help to provide immunity from vibration, temperature resistance, greater mechanical stability and protection against EMI/RFI.
The popularity and versatility of these waterproof shells ensure they can be used for a wide variety of applications, including communications equipment, oil exploration, printers, food and chemical process controllers, industrial production, outdoor telecommunications systems, industrial process control and more.
Thanks to the shells bayonet latching mechanism, which complies with the IEC 61076-3-106 standard, they offer increased protection and a secure connection in the harshest environments.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Interface: RJ45 – Cat. 5e / Cat. 6A
- Locking Mechanism: Bayonet, Lever
- Termination: Screw, Solder, IDC, Crimp
- Housing Material: Plastic, Metalised Plastic, Metal
- Max. Panel Thickness: 3.2mm
- Ingress Protection: IP20, IP67
- Pre-wired Options: Yes
- Standard Cable Lengths: 2m, 4m, 5m
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

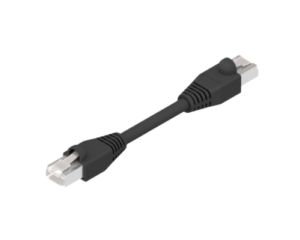

17-101324
8 Way RJ45 Cable Assembly, Straight Male to Straight Male, 2m Cat. 5e Shielded Cable with Black Jacket, IP20
17-101334
8 Way RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 5e Shielded Cable with Black Jacket, IP20
17-101344
8 Way RJ45 Cable Assembly, Straight Male to Straight Male, 5m Cat. 5e Shielded Cable with Black Jacket, IP20
795-601305
RJ45 Cable Connector Strain Relief Grommet, Yellow Version
795-601306
RJ45 Cable Connector Strain Relief Grommet, Red Version

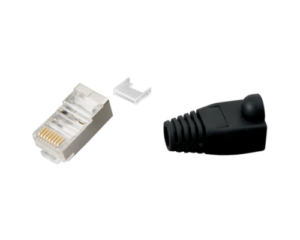

795-601307
RJ45 Cable Connector Strain Relief Grommet, White Version

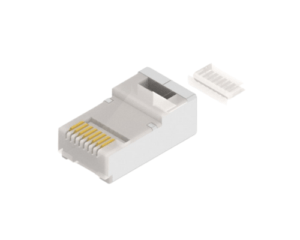

391J00039X
8 Way RJ45 Cat. 5e Male Cable Connector with IDC Contacts, 4.5-9mm Straight Cable Entry, Shieldable, IP20
391J00049X
8 Way RJ45 Cat. 6A Male Cable Connector with IDC Contacts, 4.5-9mm Straight Cable Entry, Shieldable, IP20
360X30029X
Connector Crimp Tool

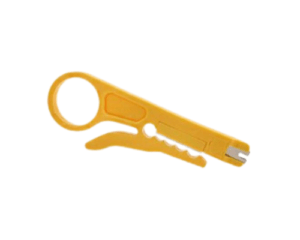

360X30049X
Insertion Tool

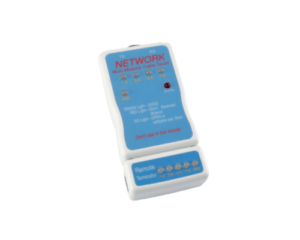

360X30039X
Cable Tester Tool
17-150424
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 2m Cat. 6A Shielded Cable with Black Jacket, Plastic Coupling Ring, IP67-IP20

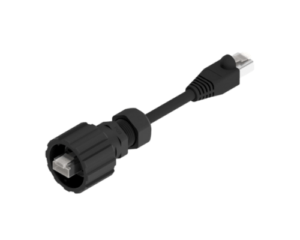

17-150434
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 6A Shielded Cable with Black Jacket, Plastic Coupling Ring, IP67-IP20
17-150444
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 5m Cat. 6A Shielded Cable with Black Jacket, Plastic Coupling Ring, IP67-IP20
17-150454
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 2m Cat. 6A Shielded Cable with Black Jacket, Plastic Coupling Ring, IP67-IP20
17-150464
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 6A Shielded Cable with Black Jacket, Plastic Coupling Ring, IP67-IP20
17-150474
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 5m Cat. 6A Shielded Cable with Black Jacket, Plastic Coupling Ring, IP67-IP20

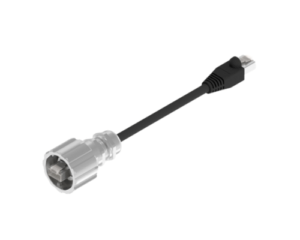

17-150484
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 2m Cat. 6A Shielded Cable with Black Jacket, Metal Coupling Ring, IP67-IP20
17-150494
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 4m Cat. 6A Shielded Cable with Black Jacket, Metal Coupling Ring, IP67-IP20
17-150504
8 Way Bayonet RJ45-IP67 to RJ45 Cable Assembly, Straight Male to Straight Male, 5m Cat. 6A Shielded Cable with Black Jacket, Metal Coupling Ring, IP67-IP20

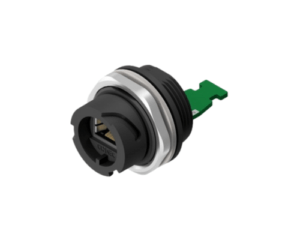

17-110484
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67

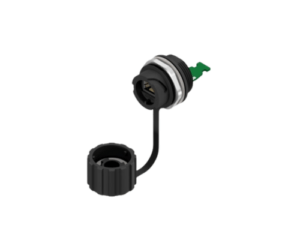

17-110914
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67
17-110974
Jam-Nut Panel Connector with Protection Cover & Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Black Plastic Shell, IP67

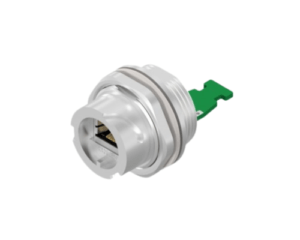

17-110544
Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 5e Shielded Jack to Solder PCB, with Grounding, Metalised Plastic Shell, IP67
