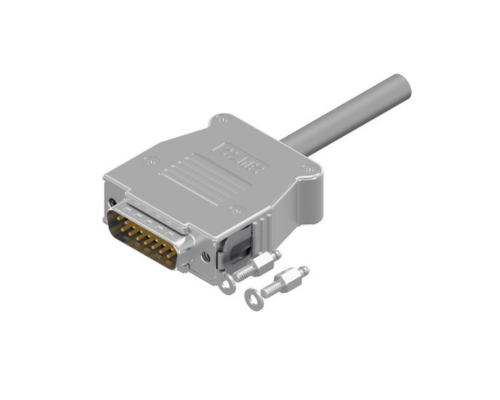

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?The D-Sub connector SnapLock locking system enables a fast and secure connection without the need of conventional thumbscrews.
A spring clip integrated into the hood locks onto a latch pin mounted on the panel connector.
Options include SnapLock backshells with accompanying panel latch pins and full pre-wired cable assembly sets.
Technical Specification
- Cable Assembly Type Single Ended
- Cable Jacket Colour Grey
- Cable Jacket Material PVC
- Cable Length 5m
- Cable Operating Temperature -40 to +80°C (fixed), -5 to +70°C (flex)
- Conductor Gauge 0.34mm²
- Connector Operating Temperature -55 to +125°C (connector), -35 to +85°C (backshell)
- Connector Type 1 15 Way Male
- Connector Type 2 NA
- Contact Plating Gold
- Coupling Area Material Metal
- Current Rating 1A
- Voltage Rating 25V AC, 60V DC
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP20
- EMC Sheild Yes
- Gender of Insert Male
- Housing Material Metalised Plastic
- Keyway/Coding Type NA
- Locking System SnapLock
- Min. Mechanical Mating Cycles 500
- Number of Conductors 15
- Positive Earth (PE) No
- Shell Type Cable Connector
