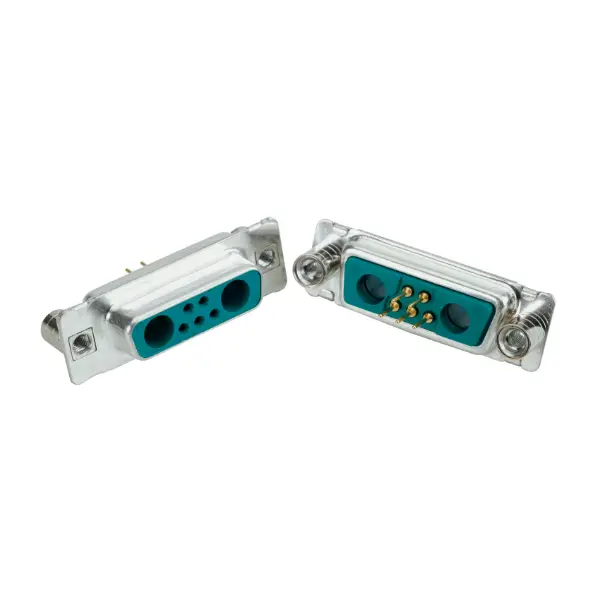

Combination D-SUB Connectors provide the ideal solution for applications that require power, signal and coaxial connections within one connector shell.
This series of connectors uses the widely recognisable d-sub shell but offers an almost endless selection of configurations created by mixing power, signal and coaxial contacts.
Pin counts range from 2-47 with a current carrying capacity of up to 40A.
Termination types include crimp, solder cup, screw, and both straight and angled dip solder for PCB use.
Product characteristics
- Space savings on the PCB.
- Various wire terminations in a single shell
- Cost savings – mixed layout.
- Insertable and removable coaxial, power, high voltage and signal contacts.
- Wide product range
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 2-47
- Locking Mechanism: Hood with Screws
- Termination: Solder, Dip-Solder, Press-Fit, Wire Wrap, Crimp, Screw, Press-Fit
- Wire Gauge Max: 8.35mm²
- Max. Voltage: Available on Request
- Max. Current: 2.5-40A
- Ingress Protection: IP20
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
