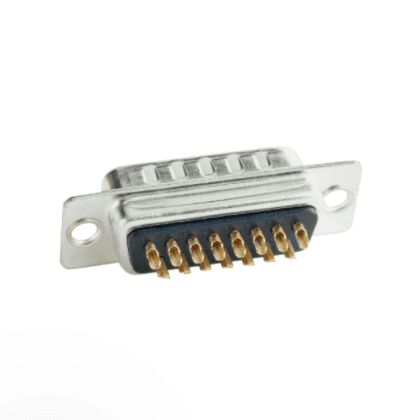

CONEC D-Sub Standard & High Density Series

In brief:

This rectangular flanged connector with d-shaped mating face is commonly used in a variety of environments including telecommunication, industrial control and computer technology.

The d-subminiature (d-sub) connector has played an essential role in electronic applications for decades. Introduced in the 1950’s, this distinctive connector features a rectangular flange and d-shaped face, ensuring correct orientation is always achieved.

These connectors are deliverable in five standardised housing sizes with standard pin counts of 9 to 50 and high-density options of 15 to 78.

CONEC logo

A diverse and growing range of D-sub connectors and accessories, interface systems and circular sensor connectors

DownloadDownload Brochure

CONEC D-subminiature (d-sub) connector dimensions conform to IEC 60807-2 (formerly DIN 41652) or MIL-C-24308. Additionally, the product line is UL (E202784), CSA (LR 115000-1) and VDE (40000440) approved.

These connectors are deliverable in five standardised housing sizes with pin counts of 9, 15, 25, 37 and 50 in the standard format and 15, 26, 44, 62 and 78 way options in a high density config.

CONEC d-subs boast a trapezoidal-shaped shell that performs a number of essential functions, including electrical shielding, mechanical protection and polarisation.

Notably, these types of connector conform with, and are interchangeable with, all other conforming d-sub connectors on the market.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
