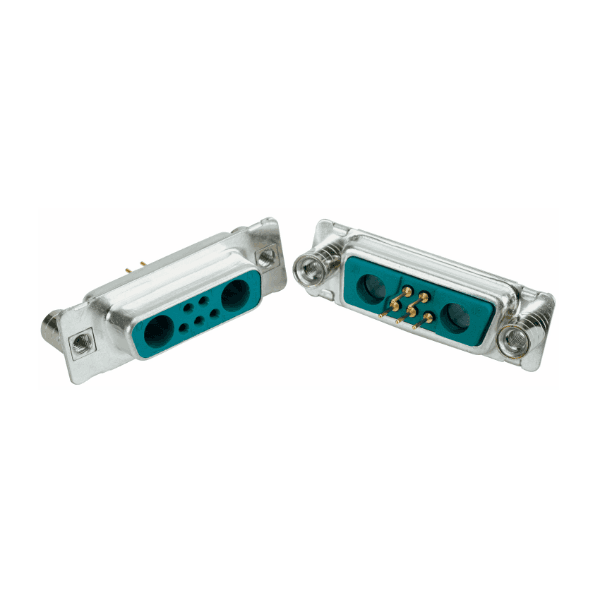

CONEC D-Sub Combination Series

In brief:

Rectangular flanged connector with d-shaped mating face.

Combination d-subminiature (d-sub) connectors provide the ideal solution for applications that require power, signal and coaxial connections within one connector shell.

Through mixing power, signal and coaxial contacts, Conec d-sub connectors, which are used for both industrial and commercial applications, offer the significant benefit of achieving a particularly wide number of configurations.

This series also has the added advantage of facilitating space-saving on both PCB's and IO designs.

CONEC logo

A diverse and growing range of D-sub connectors and accessories, interface systems and circular sensor connectors

DownloadDownload Brochure

Combination D-SUB Connectors provide the ideal solution for applications that require power, signal and coaxial connections within one connector shell.

This series of connectors uses the widely recognisable d-sub shell but offers an almost endless selection of configurations created by mixing power, signal and coaxial contacts.

Pin counts range from 2-47 with a current carrying capacity of up to 40A.

Termination types include crimp, solder cup, screw, and both straight and angled dip solder for PCB use.

Product characteristics

  • Space savings on the PCB.
  • Various wire terminations in a single shell
  • Cost savings - mixed layout.
  • Insertable and removable coaxial, power, high voltage and signal contacts.
  • Wide product range

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
