binder Snap-in Subminiature (620 Medical Application Series)

The binder snap-in IP67 series is a fantastic range of waterproof subminiature connectors suitable for harsh environments that require a simple locking mechanism.

The original 620 series comes in black as standard but this new introdction aimed at the medical market means the range now also boasts white/grey variants similar to that of RAL 9002.

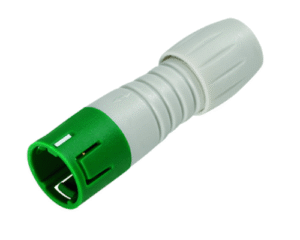

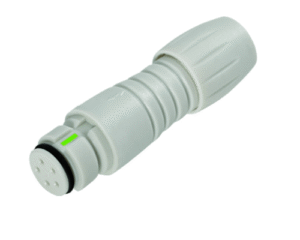

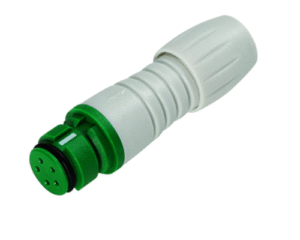

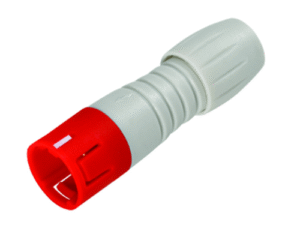

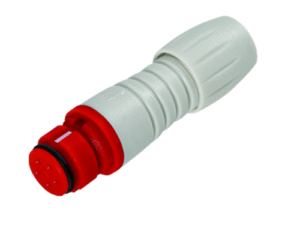

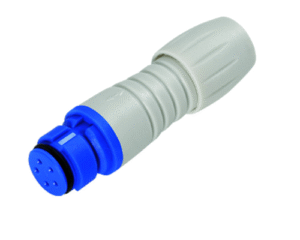

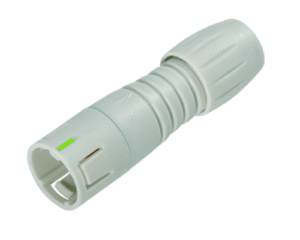

The field attachable cable connectors have solder cup termination and can be mated in-line for an extension piece or coupled with the solder cup or dip solder panel receptacles.

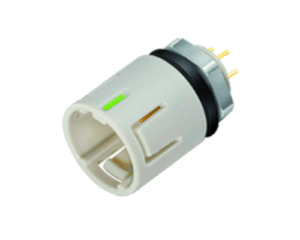

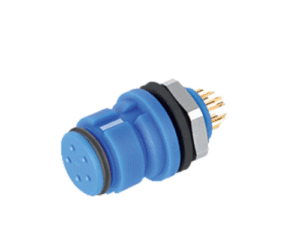

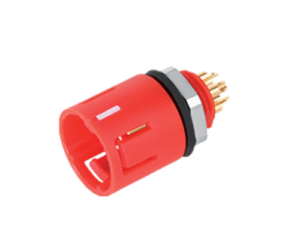

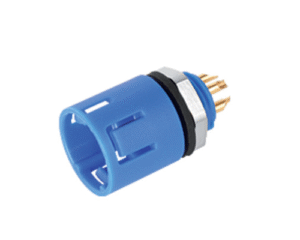

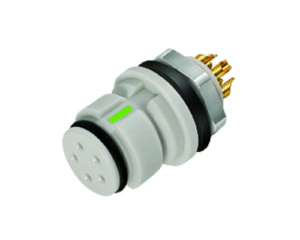

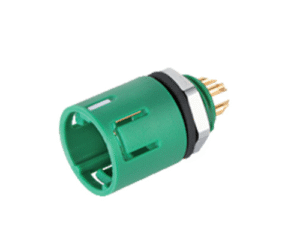

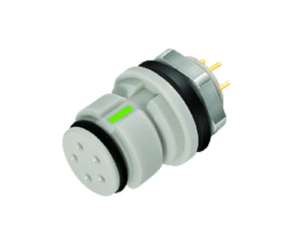

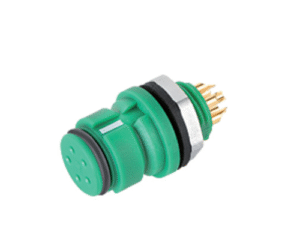

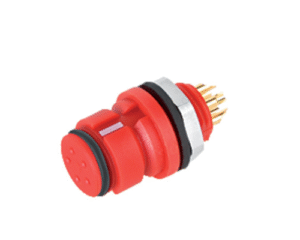

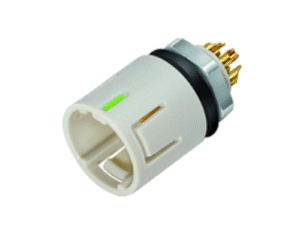

The 620 series has a unique option on the panel receptacle which is front mount / rear fastened as standard.  With two optional panel adapters the receptacles can be either switched to be rear mount / front fastened or flush mounted to reduce the chances of accidental damage.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 3-8
• Locking Mechanism: Snap-in
• Contact Termination: Solder, Dip-Solder
• Wire Gauge Max: 0.25mm²
• Cable Diameter Range: 3-5mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 125V
• Max. Current: 1-3A
• Ingress Protection Max: IP67
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
