binder Snap-in ELC (570 Medical Application Series)

The ELC Series 570 features a unique snap-in locking system that ensures more than 5000 mating operations, meeting the requirements of many medical device OEMs.

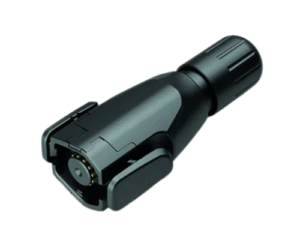

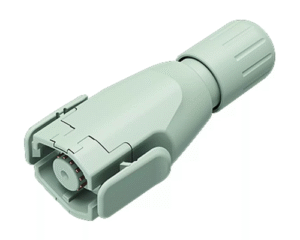

The connector has a PA66 plastic housing in grey-white, similar to RAL 9002, 4/8/12 gold-plated contacts for a connection cross section of 0.25 mm² and is designed for a rated current of 2A at 150V.

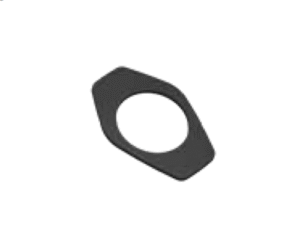

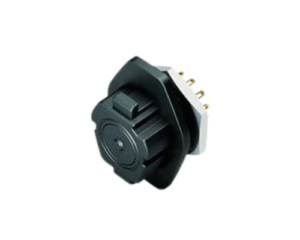

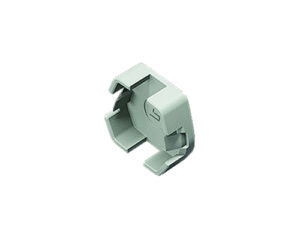

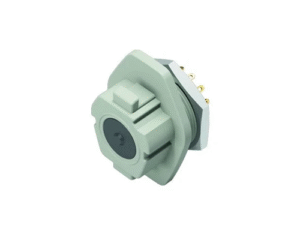

When unplugged, the flange socket is protected against the ingress of liquids, splashing water and accidental electrical contact.

When plugged in, the ELC connector has protection class IP54.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 12
• Locking Mechanism: Latch
• Contact Termination: Solder
• Wire Gauge Max: 0.25mm²
• Cable Diameter Range: 4-8mm
• Connector Types: Cable to Panel
• Max. Voltage: 150V
• Max. Current: 2A
• Ingress Protection Max: IP54
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
