binder M9 IP67 (712, 702 Series)

M9 connectors are similar in dimension to the slightly smaller M8 threaded variants which are more established in the industry.

This slight size increase over M8 however offers more shielding and boardmounting possibilities.

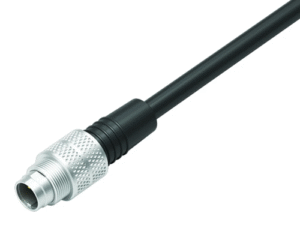

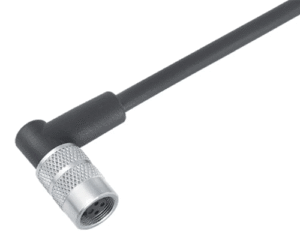

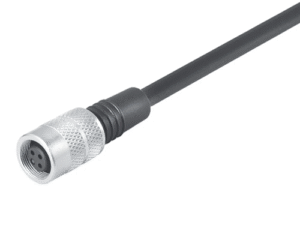

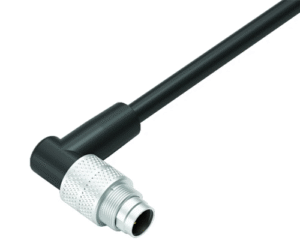

The M9 IP67 system also offers more variety over the IP40 equivalent (711 series) with the introduction of right angled field attachable cable connectors, overmoulded cordsets and shielded versions.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001

• No. of Contacts: 2-8
• Locking Mechanism: Screw
• Contact Termination: Solder, Dip-Solder, Flexi-PCB
• Wire Gauge Max: 0.25mm²
• Cable Diameter Range: 3.5-5.5mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 125V
• Max. Current: 1-4A
• Ingress Protection Max: IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
