binder M9 IP40 (711 Series)

M9 connectors are similar in dimension to the slightly smaller M8 threaded variants which are more established in the industry.

This slight size increase over M8 however opens the connector up to higher pin counts which range from 2-8 with versions offering IP40 or IP67 environmental protection.

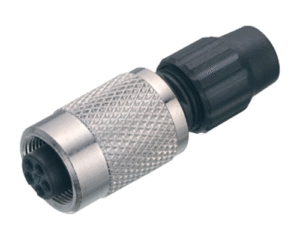

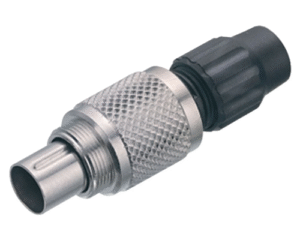

The M9 IP40 system offers a solder cup field attachable cable plug and panel receptacle with solder cup or dip solder termination for PCB use. In addition to this there is also the option of panel receptacle with pre-terminated flexible PCB for ultimate convenience.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001

• No. of Contacts: 2-8
• Locking Mechanism: Screw
• Contact Termination: Solder, Dip-Solder
• Wire Gauge Max: 0.25mm²
• Cable Diameter Range: 3-5mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 125V
• Max. Current: 1-4A
• Ingress Protection Max: IP40
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
