binder M8 D-Coded (818 Series)

M8-D connectors are essential components for data transmission and known for their efficiency and reliability in demanding industrial environments with limited installation spaces.

The M8 D-coded connector offers a robust solution for high-speed data communication, with options for both M8-D male connectors and M8-D female connectors to accommodate various connection needs.

The M8 connector D-coding ensures secure and precise data transmission, making it particularly well-suited for Ethernet applications.

M8-D connectors are designed to meet the high demands of industrial data connectivity in applications with small or limited space with data rates of up to 100 Mbit/s.

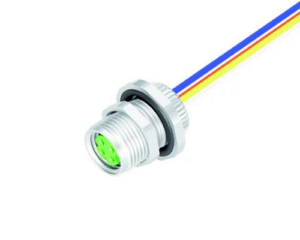

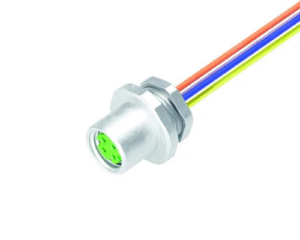

Connectors with D-coding are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors.

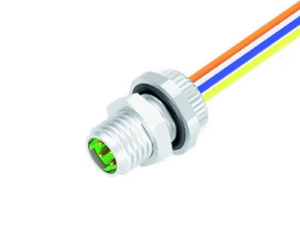

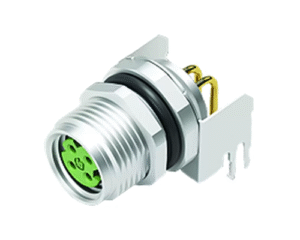

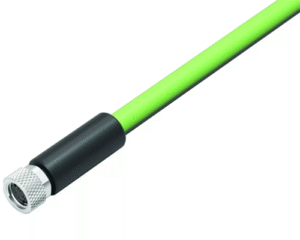

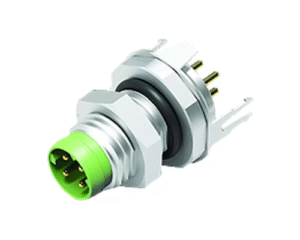

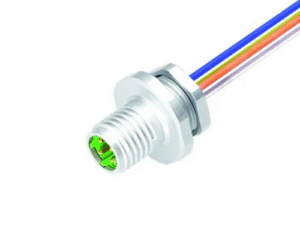

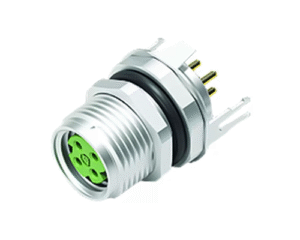

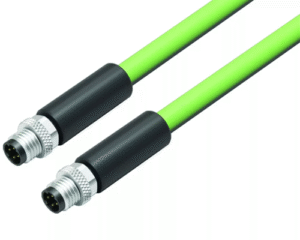

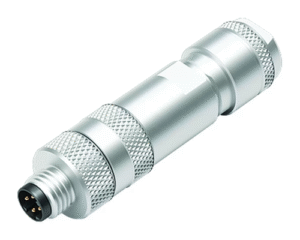

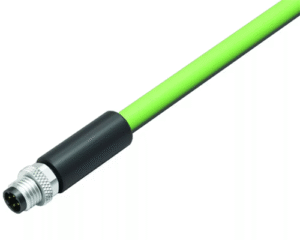

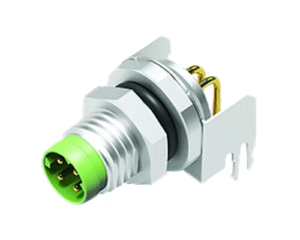

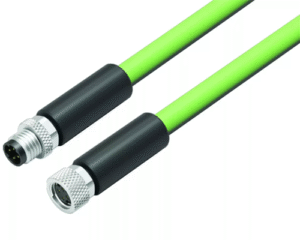

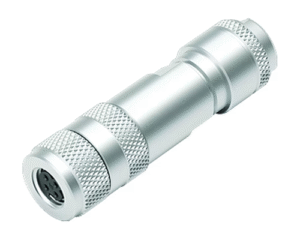

The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 4
• Locking Mechanism: Screw
• Contact Termination: Screw, Dip-Solder
• Wire Gauge Max: 0.50mm²
• Cable Diameter Range: 4-8mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 63V
• Max. Current: 4A
• Ingress Protection Max: IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
