binder M8 A-Coded (768, 718 Series)

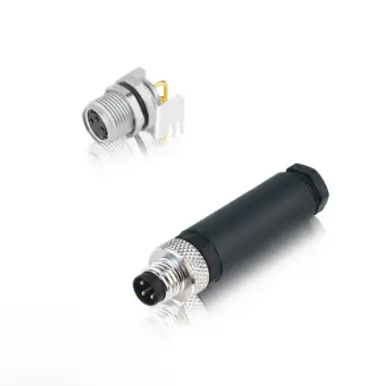

The binder M8 or 768/718 series is a range of sub-miniature circular sensor and automation connectors with screw lock coupling.

The connectors are available in 3-12 way options and offer IP65 & IP67 environmental protection in mated condition.

The M8 series is an engineer’s favourite as it balances a neat and compact shell with a variety of pin counts, shell variants and termination methods.

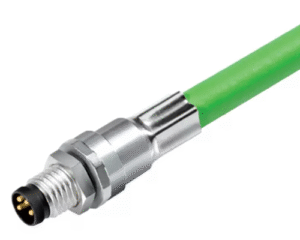

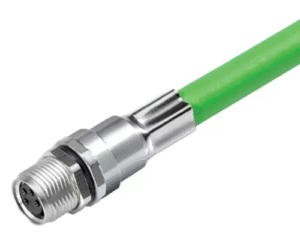

Field attachable cable connectors are available in solder cup, screw and IDC termination and with the standard plastic shell and metal coupling ring or as a full metal body with excellent EMC shielding properties. Binder also boast a vast range of moulded cable options in both PVC or PUR jacket, with straight or angled orientation and with standard or stainless steel coupling ring.

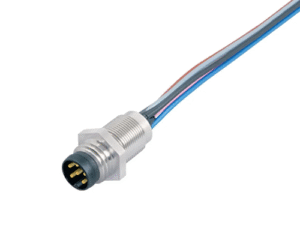

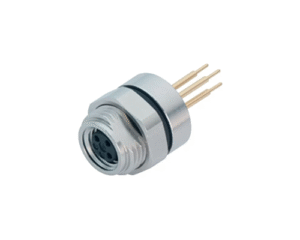

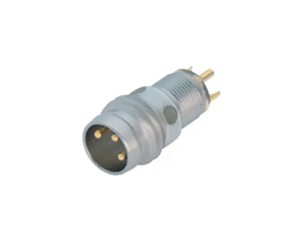

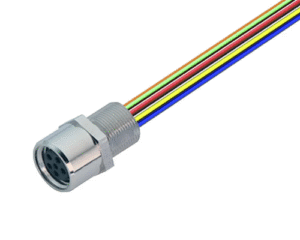

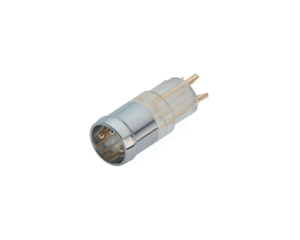

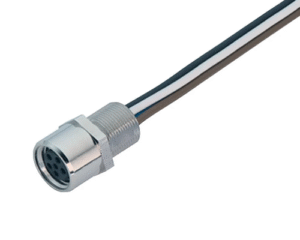

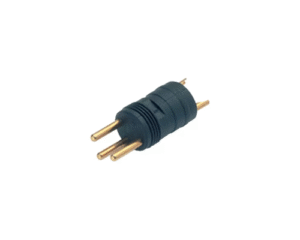

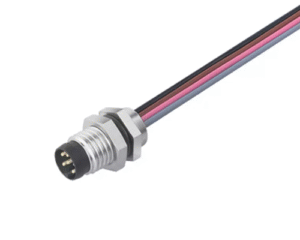

Panel receptacles are also available in many varieties including options with front or rear fastening, with solder cup, dip solder or pre-terminated wires and also shells with or without shielding sheet.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 3-12
• Locking Mechanism: Screw
• Contact Termination: Solder, Dip-Solder, Screw, IDC
• Wire Gauge Max: 0.50mm²
• Cable Diameter Range: 3-5mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 30-60V
• Max. Current: 1.5-4A
• Ingress Protection Max: IP65, IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
