binder M5 (707 Series)

The binder M5 or 707 series is a range of tiny circular sensor and automation connectors with screw lock coupling.

The connectors are available in 3 and 4 way options and offer IP67 in mated condition.

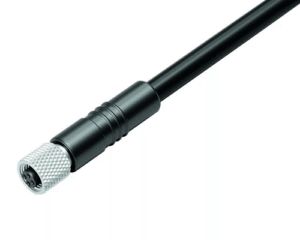

Due to the small size of the cable connectors binder offer these as a moulded product only as a field attachable would prove difficult to terminate with such fine cavities. Moulded cable options offer 2m and 5m black PUR as standard and with a choice 0.14mm² or 0.25mm² wire gauge.

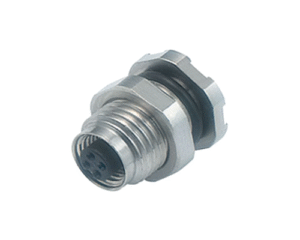

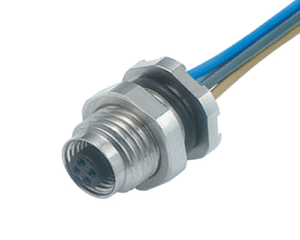

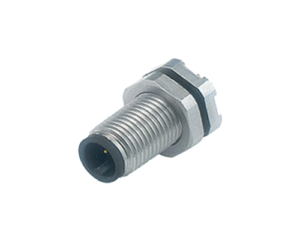

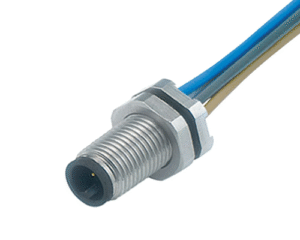

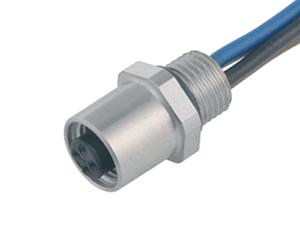

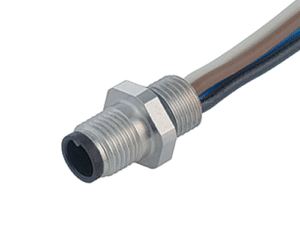

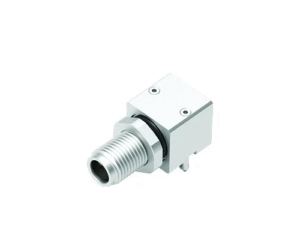

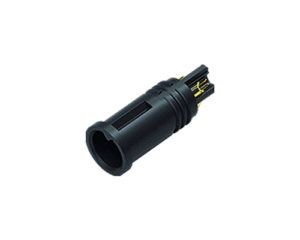

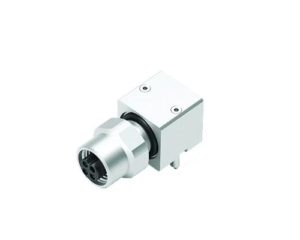

To simplify the installation further receptacles are also offered pre-terminated with 20cm of trailing wires again the options of 0.14mm² and 0.25mm² gauge. Other receptacle variants include versions with PCB pins for board use and a version without the outer shell to be directly loaded into sensor tubes.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 3-4
• Locking Mechanism: Screw
• Contact Termination: Dip-Solder
• Wire Gauge Max: 0.25mm²
• Cable Diameter Range: NA
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 125V
• Max. Current: 1A
• Ingress Protection Max: IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
