binder M18 (714 Series)

The M18 or 714 series from Binder is quite a narrow range of electrical connectors with only a 4 way variant in female cable plug or male receptacle.

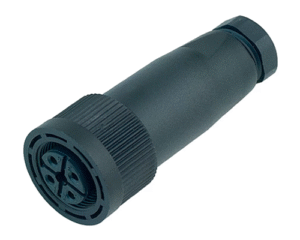

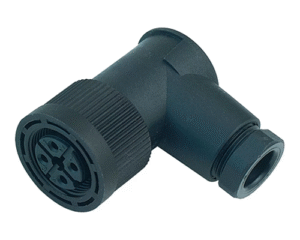

The field attachable cable connector uses screw termination and caters for up to 1.50mm² wire gauge and either 6.5-8 or 10-12mm cable OD.

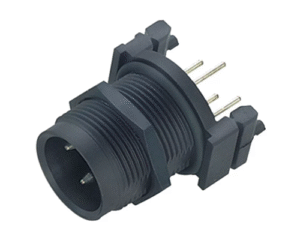

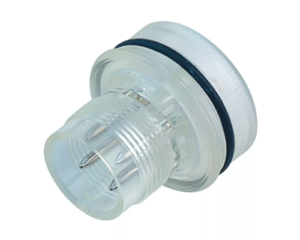

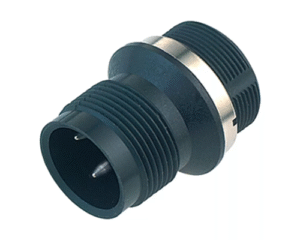

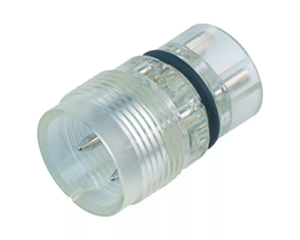

Receptacles are offered as a transparent version for use with sensor technology or in the standard black plastic bodies with front or rear fastened lock nut.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 4
• Locking Mechanism: Screw
• Contact Termination: Solder, Dip-Solder, Screw
• Wire Gauge Max: 1.50mm²
• Cable Diameter Range: 6.5-12mm
• Connector Types: Cable to Panel
• Max. Voltage: 250V
• Max. Current: 5-16A
• Ingress Protection Max: IP67
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
