binder M16 X-Coded (415 Series)

The 415 series of X-coded M16 connectors can accommodate data transfer rates up to an impressive 10 Gbits/s.

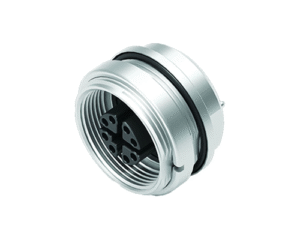

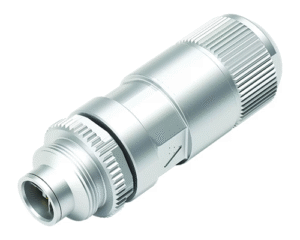

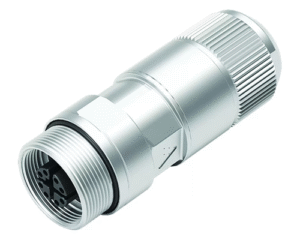

The 8-contact series includes both male and female cable connector and a female rear-mounting panel connector.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 8
• Locking Mechanism: Screw
• Contact Termination: IDC, Dip-Solder
• Wire Gauge Max: 0.33mm²
• Cable Diameter Range: 5.5-9mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 50V (AC), 60V (DC)
• Max. Current: 0.5A
• Ingress Protection Max: IP67
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
