binder’s M16 IP67 miniature connector series are a wide range of industrial waterproof circulars with rugged shells and with a variety of pin counts.
The M16 series is historically one of binder’s most popular ranges due to its fine balance of cost, durability and versatility.
The M16 IP67 series is one of the widest ranges in the Binder portfolio and there are many options including cable versions with straight or angled orientation, short or longer bodies, shieldable or non-shieldable backshells and with solder, screw or crimp termination. The series also boasts a variant which is black in colour therefore non-reflective for covert applications and with a higher level of corrosion resistance.
Panel receptacles are available in either front or rear fastened, with solder cup or crimp contacts or with dip solder pins or flexible PCB for board use.
The series offers a lot of scope with pin counts ranging from 2-8 way with 1.50mm² wire gauge, 12-19 way with 0.25mm² wire gauge and a high density option of 24 way with 0.14mm² wire gauge.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001
- No. of Contacts: 2-24
- Locking Mechanism: Screw
- Contact Termination: Solder, Dip-Solder, Screw, Crimp, Flexi-PCB
- Wire Gauge Max: 1.00mm²
- Cable Diameter Range: 4-10mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 60-250V
- Max. Current: 1-7A
- Ingress Protection Max: IP67
- Pre-wired Options: Yes
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
binder’s M16 IP67 miniature connector series are a wide range of industrial waterproof circulars with rugged shells and with a variety of pin counts.
The M16 series is historically one of binder’s most popular ranges due to its fine balance of cost, durability and versatility.
The M16 IP67 series is one of the widest ranges in the Binder portfolio and there are many options including cable versions with straight or angled orientation, short or longer bodies, shieldable or non-shieldable backshells and with solder, screw or crimp termination. The series also boasts a variant which is black in colour therefore non-reflective for covert applications and with a higher level of corrosion resistance.
Panel receptacles are available in either front or rear fastened, with solder cup or crimp contacts or with dip solder pins or flexible PCB for board use.
The series offers a lot of scope with pin counts ranging from 2-8 way with 1.50mm² wire gauge, 12-19 way with 0.25mm² wire gauge and a high density option of 24 way with 0.14mm² wire gauge.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001
- No. of Contacts: 2-24
- Locking Mechanism: Screw
- Contact Termination: Solder, Dip-Solder, Screw, Crimp, Flexi-PCB
- Wire Gauge Max: 1.00mm²
- Cable Diameter Range: 4-10mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 60-250V
- Max. Current: 1-7A
- Ingress Protection Max: IP67
- Pre-wired Options: Yes
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
09-0101-70-02
2 Way M16 Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0101-25-02
2 Way M16 Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Black Version, IP67 (723 Series)

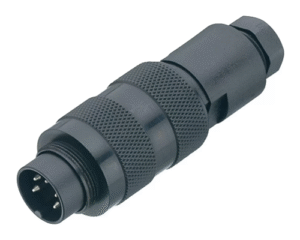

09-0101-19-02
2 Way M16 Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0102-70-02
2 Way M16 Female Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Black Version, IP67 (723 Series)

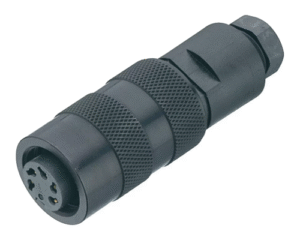

09-0102-25-02
2 Way M16 Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0101-79-02
2 Way M16 Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0103-09-02
2 Way M16 Male Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)

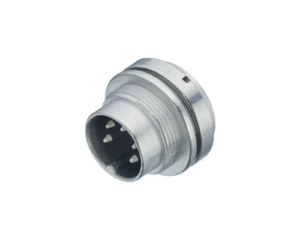

09-0103-00-02
2 Way M16 Male Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)
09-0102-79-02
2 Way M16 Female Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0103-89-02
2 Way M16 Male Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)

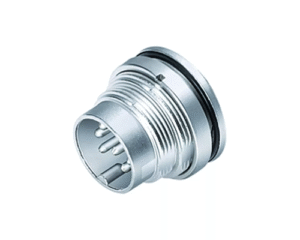

09-0103-80-02
2 Way M16 Male Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)

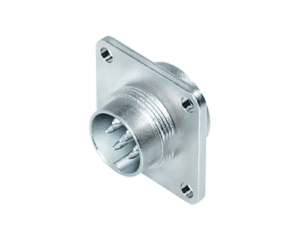

09-0103-300-02
2 Way M16 Male Square Flanged Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)

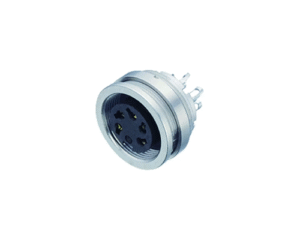

09-0104-00-02
2 Way M16 Female Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)

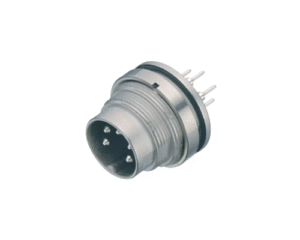

09-0103-99-02
2 Way M16 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (423, 723, 425 Series)
09-0103-90-02
2 Way M16 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (423, 723, 425 Series)

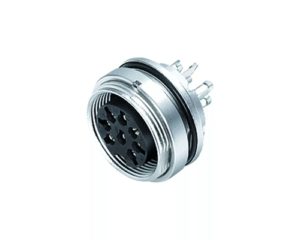

09-0104-80-02
2 Way M16 Female Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)

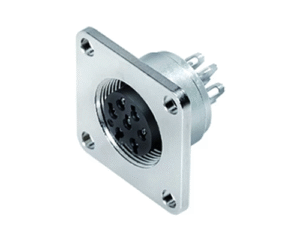

09-0104-300-02
2 Way M16 Female Square Flanged Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)
09-0104-09-02
2 Way M16 Female Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)
09-0104-99-02
2 Way M16 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (423, 723, 425 Series)

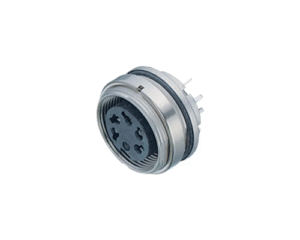

09-0104-90-02
2 Way M16 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (423, 723, 425 Series)
09-0104-89-02
2 Way M16 Female Jam-Nut Panel Connector with Solder Contacts, IP67 (423, 723, 425 Series)
09-0105-70-03
3 Way M16 Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0105-25-03
3 Way M16 Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Black Version, IP67 (723 Series)
09-0105-19-03
3 Way M16 Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Black Version, IP67 (723 Series)
