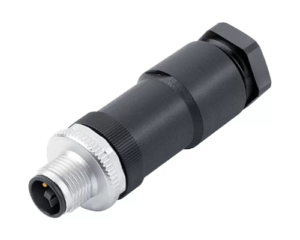

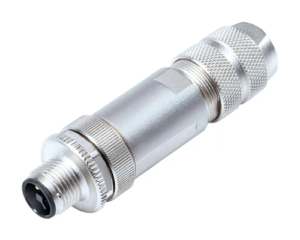

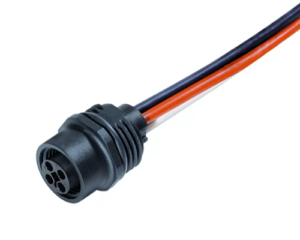

Connectors of the 813 series with screw locking according to DIN EN 61076-2-111 are T-coded for DC applications.
T-coded versions have 4 contacts with a rated current of 12A at 63VDC.

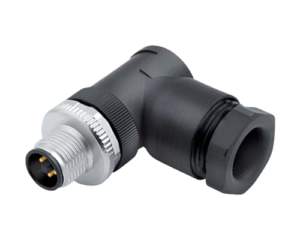

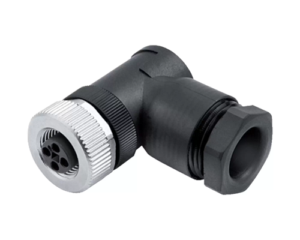

The straight and angled cable connectors have screw terminals, but are also available with moulded cable.

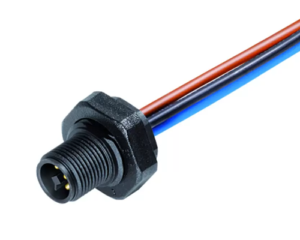

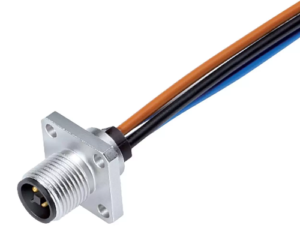

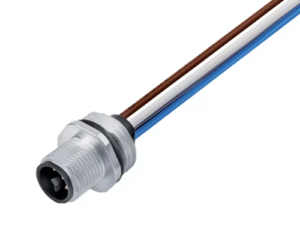

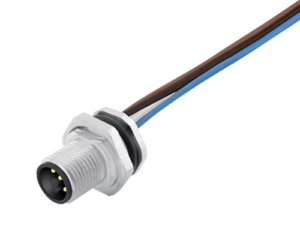

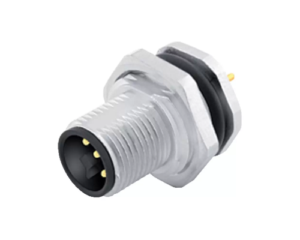

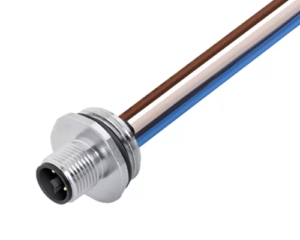

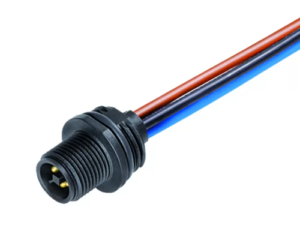

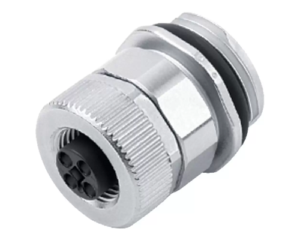

Flange connectors have dip solder terminals, but also stranded wires.

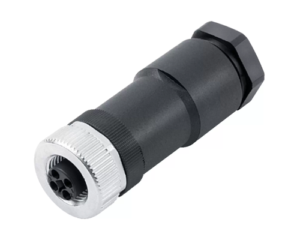

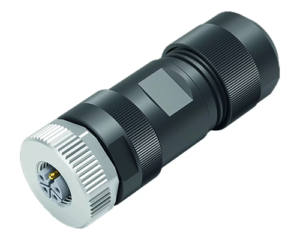

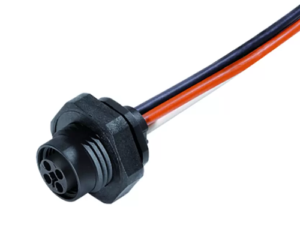

Connectors of the 823 series with screw locking according to DIN EN 61076-2-111 are L-coded for DC applications.
L-coded versions have 4+FE contacts with a rated current of 12A/16A at 63VDC.

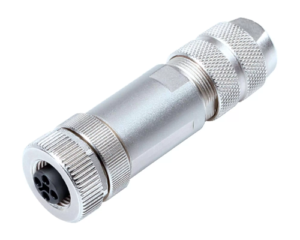

The straight and angled cable connectors have screw terminal connection.

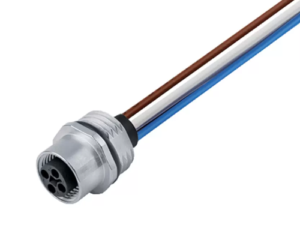

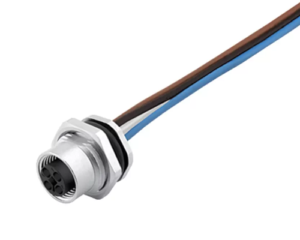

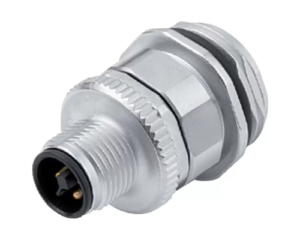

Flanged connectors are available with dip solder terminals as well as with stranded wires.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 4 & 5
- Locking Mechanism: Screw
- Contact Termination Options: Screw, Dip-Solder
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: 5-13mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 63V
- Max. Current: 12-16A
- Ingress Protection Max: IP67
- Pre-wired Options: Yes
