Connectors of the 814 series with screw locking according to DIN EN 61076-2-111 are S-coded for AC applications.
They have 2+PE and 3+PE contacts with a rated current of 12A at 630VAC.

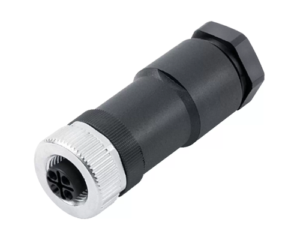

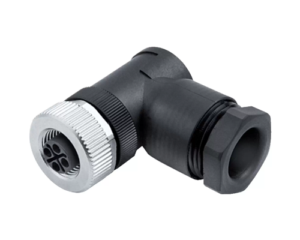

These connectors are available in straight and angled cable versions, with screw terminal connection.

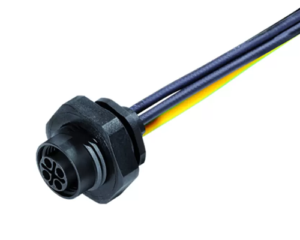

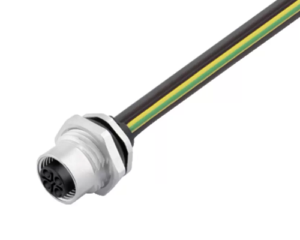

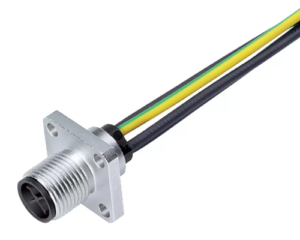

The flange versions are available with screw terminals as well as with stranded wires.
Connectors of the 824 series with screw locking according to DIN EN 61076-2-111 are K-coded for AC applications.
They have 4+PE contacts with a rated current of 12A at 630VAC.
These connectors are available in a terminated version, both straight and right-angled.

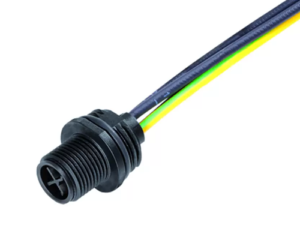

Flange connectors are available with stranded wires.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Screw
- Contact Termination Options: Screw
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: 6-13mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 630V
- Max. Current: 12-16A
- Ingress Protection Max: IP67
- Pre-wired Options: Yes
