binder Bayonet HEC Power (696 Series)

The Bayonet HEC (Harsh Environment Connector) Power series is the latest addition to the substantial Binder portfolio and offers IP68 & IP69K environmental protection in mated condition allowing for use in harsh environments where water and the threat of temporary submersion is present.

The system uses a bayonet locking mechanism to secure the connection and has an arrangement of crimp contacts to be purchased separately which cater for wire gauges as high as 6.00mm².

HEC connectors offer versatility with the same shell size catering for 5, 8 & 12 way configurations for power, signal and a combination of both.

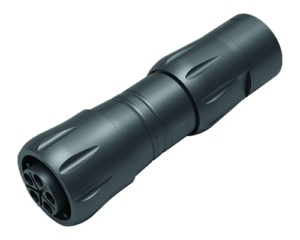

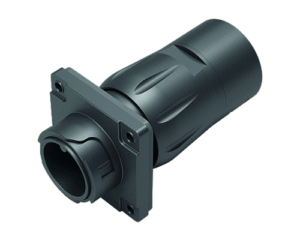

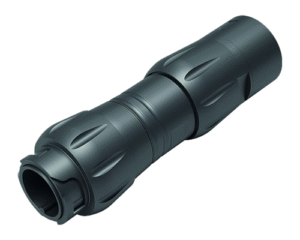

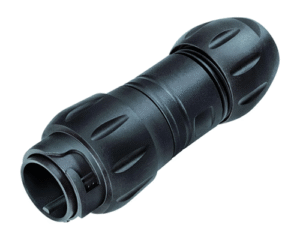

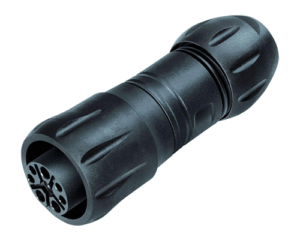

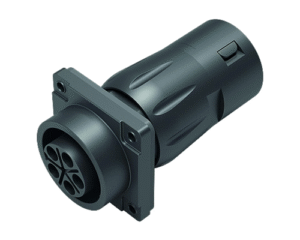

Like most circular connector systems, the series uses an industry standard stuffing gland at the rear of the cable plug to provide ingress protection however users can also select a plug with a conduit fixing for further flexibility.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
