binder M18 (714 Series)

Binder M18 Sensor & Automation Connectors 714

In brief:

Robust multi-pin circular connector system with industry standard M18x1 screw locking functionality.

M18 connectors are available in a 4 way format with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state.

Robust and compact circular connectors from one of the industry’s most trusted brands

Download Brochure

The M18 or 714 series from Binder is quite a narrow range of electrical connectors with only a 4 way variant in female cable plug or male receptacle.

The field attachable cable connector uses screw termination and caters for up to 1.50mm² wire gauge and either 6.5-8 or 10-12mm cable OD.

Receptacles are offered as a transparent version for use with sensor technology or in the standard black plastic bodies with front or rear fastened lock nut.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

14 products match your criteria:

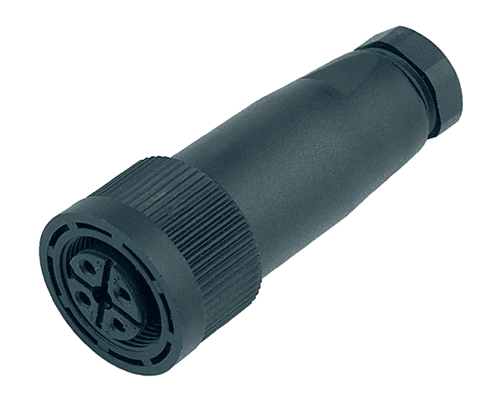

Part no. : 09-0440-10-04

4 Way M18 Female Cable Connector with Screw Contacts, 6.5-8mm Straight Cable Entry, IP67 (714 Series)

Part no. : 09-0440-010-04

4 Way M18 Female Cable Connector with Screw Contacts, 6.5-8mm Straight Cable Entry, IP67 (714 Series)

Part no. : 99-0440-16-04

4 Way M18 Female Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (714 Series)

Part no. : 99-0440-016-04

4 Way M18 Female Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (714 Series)

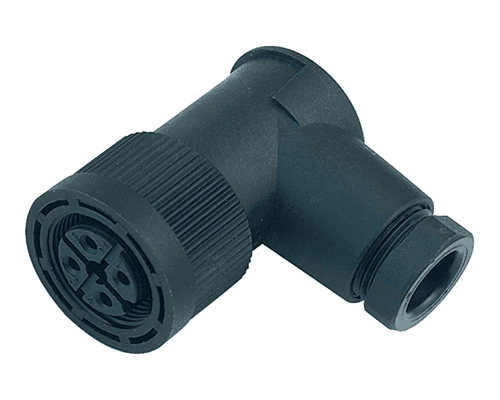

Part no. : 09-0440-00-04

4 Way M18 Female Cable Connector with Screw Contacts, 6.5-8mm Angled Cable Entry, IP67 (714 Series)

Part no. : 09-0440-000-04

4 Way M18 Female Cable Connector with Screw Contacts, 6.5-8mm Angled Cable Entry, IP67 (714 Series)

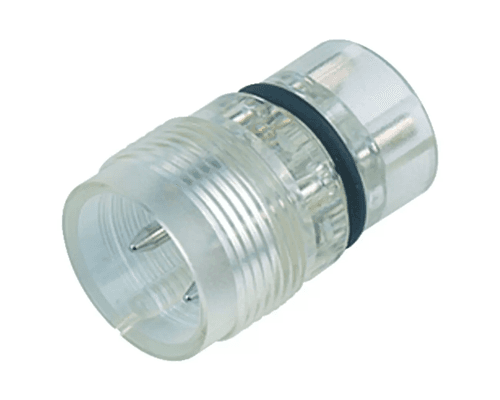

Part no. : 09-0441-00-04

4 Way M18 Male Insert with Solder Contacts, Press-in Tube Mounting, Translucent Version (714 Series)

Part no. : 09-0441-50-04

4 Way M18 Male Insert with Solder Contacts, Press-in Tube Mounting, Translucent Version (714 Series)

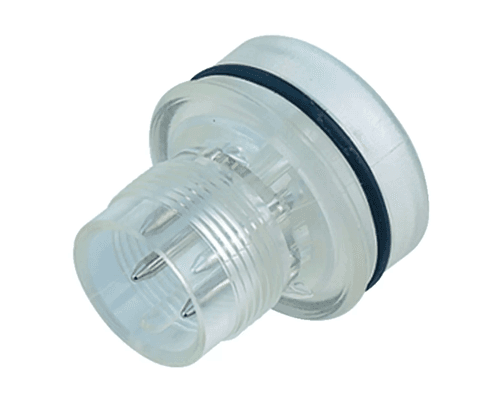

Part no. : 09-0443-00-04

4 Way M18 Male Insert with Solder Contacts, Press-in Tube Mounting, Translucent Version (714 Series)

Part no. : 09-0443-50-04

4 Way M18 Male Insert with Solder Contacts, Press-in Tube Mounting, Translucent Version (714 Series)

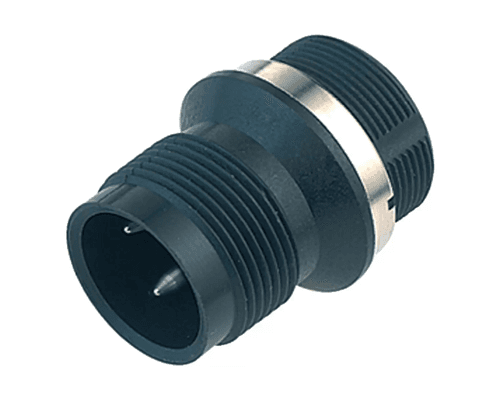

Part no. : 09-0441-81-04

4 Way M18 Male Jam-Nut Panel Connector with Solder Contacts, IP67 (714 Series)

Part no. : 09-0441-081-04

4 Way M18 Male Jam-Nut Panel Connector with Solder Contacts, IP67 (714 Series)

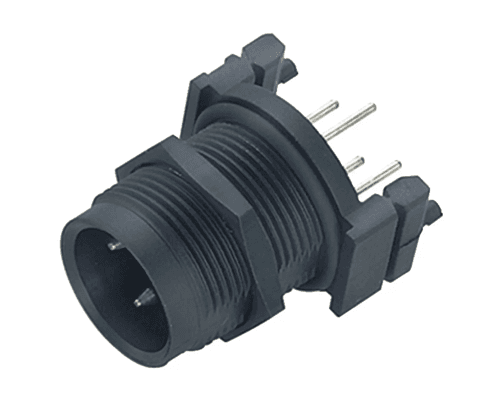

Part no. : 09-0441-90-04

4 Way M18 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (714 Series)

Part no. : 09-0441-090-04

4 Way M18 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (714 Series)
