binder Bayonet NCC Miniature (770 Medical Application Series)

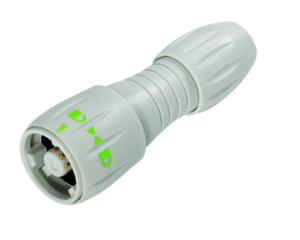

The distinctive locking system of the Binder Bayonet NCC allows for over 5000 mating cycles with guaranteed performance which is often 10 x that of competitors’ product.

Available only in an 8 way configuration for now but with further pin counts on the way this Binder connector system really has burst onto the scene with its cutting edge characteristics and aesthetic design.

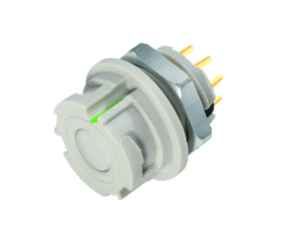

The system features a receptacle which when disconnected from the mating cable connector is sealed to IP67 with a uniquely designed spring loaded inner insert which pops up to be flush with the outer shell. This design prevents any foreign objects contaminating the contacts when not in use and any water from passing through the connection if placed in a harsh environment without the need of a protection cap.

For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• No. of Contacts: 8
• Locking Mechanism: Bayonet
• Contact Termination: Solder, Dip-Solder
• Wire Gauge Max: 0.25mm²
• Cable Diameter Range: 2.5-8mm
• Connector Types: Cable to Panel
• Max. Voltage: 175V
• Max. Current: 2A
• Ingress Protection Max: IP67
• Min. Mechanical Mating Cycles: 5,000
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
