binder Bayonet Miniature (678 Series)

The binder bayonet miniature series is a small yet practical connector system with a wide choice of pin configurations.

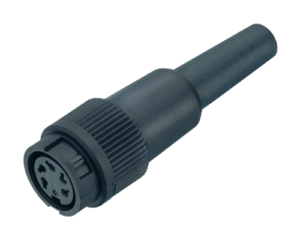

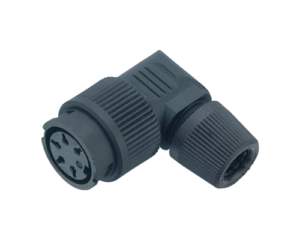

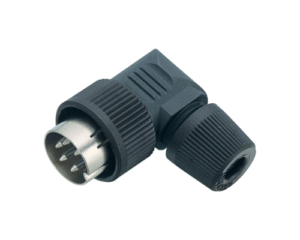

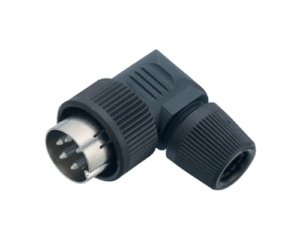

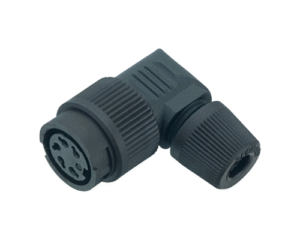

The cable connectors of the 678 series are available in both genders and in straight and angled version with cable collet outlets of either 4-6mm or 6-8mm. Panel connectors are front mount/rear fastened in both male and female genders and have solder termination.

With a wide choice of pin configurations this bayonet system is often used on a variety of applications with wire gauges ranging from as small as 0.14mm² allowance on the 24 way to as large as 0.75mm² on the 2-8 way layouts.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 2-24
• Locking Mechanism: Bayonet
• Contact Termination: Solder
• Wire Gauge Max: 0.75mm²
• Cable Diameter Range: 4-8mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 60-250V
• Max. Current: 1-7A
• Ingress Protection Max: IP40
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
