binder 7/8″ (820, 870 Series)

binder 7/8” series is a range of robust waterproof circular connectors with screw lock mating mechanism.

The connectors are available in 3 (2+PE), 4 (3+PE) and 5 (4+PE) way variant in both cable plug and panel receptacle.

Field attachable cable plugs offer up to 2.50mm² wire gauge and a cable OD maximum of 14mm. A version with stainless steel locking ring allows for use in clean environments and where water is present. As well as straight and angled orientation, cable plugs are also available moulded in 2, 5 and 10m lengths. Cable is black PUR as standard.

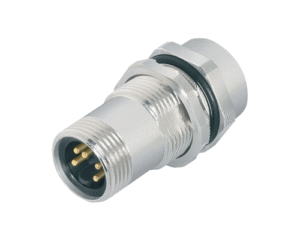

Panel receptacles offer dip solder termination for use with PCB’s, or to speed up the installation process, with pre-terminated 200mm wires.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 2-5
• Locking Mechanism: Screw
• Contact Termination: Screw, Dip-Solder
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 6-14mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 300V
• Max. Current: 8-12A
• Ingress Protection: IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
