09-9789-00-05

binder / Snap-in IP40 Subminiature (719, 709 Series)

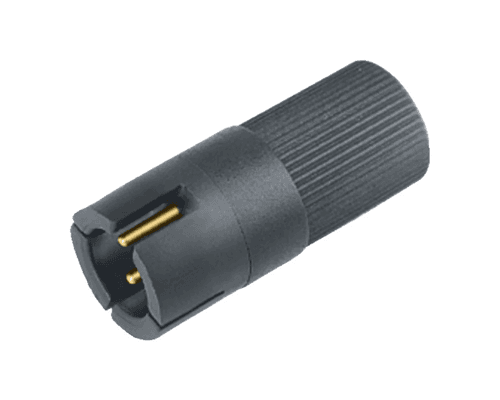

5 Way Snap-in Male Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9789-00-05 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number09-9789-00-05
Product TypeConnector
Brandbinder
Connector SeriesSnap-in IP40 Subminiature (719, 709 Series)
Backshell IncludedNo
Body OrientationStraight
Connector TypeCable Connector
Contact PlatingGold
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating3A
Voltage Rating60V
Electrical NotesRated impluse voltage @ 800V
Degree of Ingress ProtectionIP40
EMC Shielding CapabilityNo
Gender of InsertMale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemSnap-in
Min. Mechanical Mating Cycles100
Max. Wire Gauge/Cross-Sectional Area0.25mm²
Min. Cable Entry (mm)NA
Max. Cable Entry (mm)3.6
Number of Ways5
Operating Temperature-25 to +70°C
Positive Earth (PE)No
Shell sizeNA
Termination Method/TechnologySolder

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Snap-in locking mechanism.

Snap-in subminiature IP40 connectors offer pin-counts from 3 to 5 with a current carrying capacity of up to 3A per contact.

The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP40 ingress protection in mated state.

Binder Snap-in IP40 Subminiature Connectors (719, 709 Series)

The binder snap-in IP40 series is a small range of subminiature connectors suitable for low-cost applications that require a simple locking mechanism.

The series offers field attachable cable versions with or without strain relief in 3, 4 and 5 way with solder cup termination or as a single ended overmould in 2 & 5 metres as standard.

Panel mount receptacles come with termination options of both solder and dip solder for PCB use.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
