binder M9 IP40 (711 Series)

Binder M9 IP40 Connectors (711 Series)

In brief:

Compact circular connector system with M9x0.5 screw locking mechanism.

M9 IP40 connectors offer pin-counts of 2 to 8 with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP40 ingress protection in mated state.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

M9 connectors are similar in dimension to the slightly smaller M8 threaded variants which are more established in the industry.

This slight size increase over M8 however opens the connector up to higher pin counts which range from 2-8 with versions offering IP40 or IP67 environmental protection.

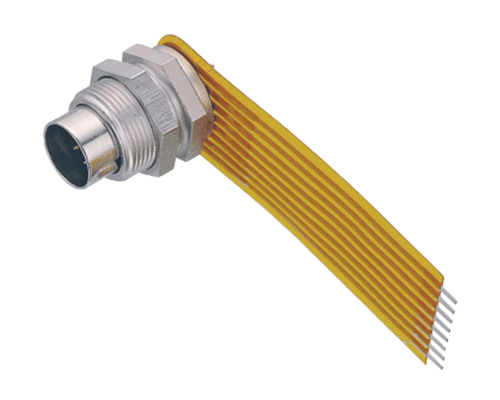

The M9 IP40 system offers a solder cup field attachable cable plug and panel receptacle with solder cup or dip solder termination for PCB use. In addition to this there is also the option of panel receptacle with pre-terminated flexible PCB for ultimate convenience.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form above or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

54 products match your criteria:

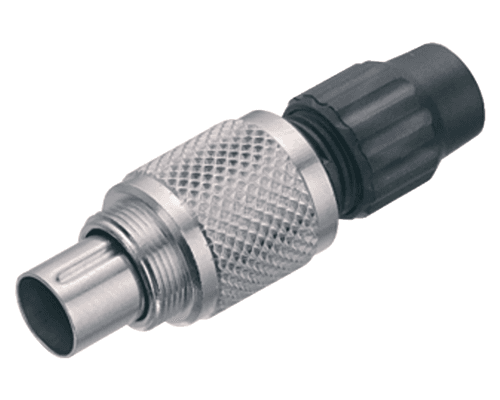

99-0071-100-02 thumbnail

Part no. : 99-0071-100-02

2 Way M9 Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0075-100-03 thumbnail

Part no. : 99-0075-100-03

3 Way M9 Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0079-100-04 thumbnail

Part no. : 99-0079-100-04

4 Way M9 Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0095-100-05 thumbnail

Part no. : 99-0095-100-05

5 Way M9 Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0475-100-07 thumbnail

Part no. : 99-0475-100-07

7 Way M9 Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0479-100-08 thumbnail

Part no. : 99-0479-100-08

8 Way M9 Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0071-102-02 thumbnail

Part no. : 99-0071-102-02

2 Way M9 Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0075-102-03 thumbnail

Part no. : 99-0075-102-03

3 Way M9 Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0079-102-04 thumbnail

Part no. : 99-0079-102-04

4 Way M9 Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0095-102-05 thumbnail

Part no. : 99-0095-102-05

5 Way M9 Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0475-102-07 thumbnail

Part no. : 99-0475-102-07

7 Way M9 Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0479-102-08 thumbnail

Part no. : 99-0479-102-08

8 Way M9 Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

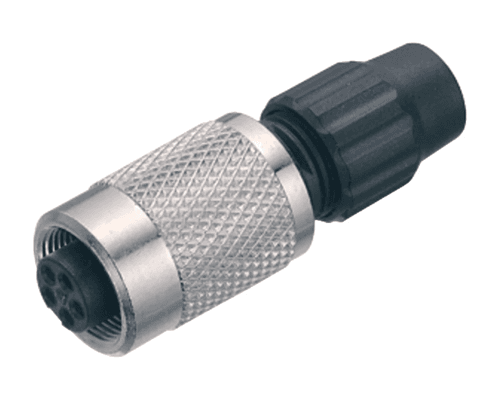

99-0072-100-02 thumbnail

Part no. : 99-0072-100-02

2 Way M9 Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0076-100-03 thumbnail

Part no. : 99-0076-100-03

3 Way M9 Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0080-100-04 thumbnail

Part no. : 99-0080-100-04

4 Way M9 Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0096-100-05 thumbnail

Part no. : 99-0096-100-05

5 Way M9 Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0476-100-07 thumbnail

Part no. : 99-0476-100-07

7 Way M9 Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0480-100-08 thumbnail

Part no. : 99-0480-100-08

8 Way M9 Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (711 Series)

99-0072-102-02 thumbnail

Part no. : 99-0072-102-02

2 Way M9 Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0076-102-03 thumbnail

Part no. : 99-0076-102-03

3 Way M9 Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0080-102-04 thumbnail

Part no. : 99-0080-102-04

4 Way M9 Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0096-102-05 thumbnail

Part no. : 99-0096-102-05

5 Way M9 Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0476-102-07 thumbnail

Part no. : 99-0476-102-07

7 Way M9 Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

99-0480-102-08 thumbnail

Part no. : 99-0480-102-08

8 Way M9 Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (711 Series)

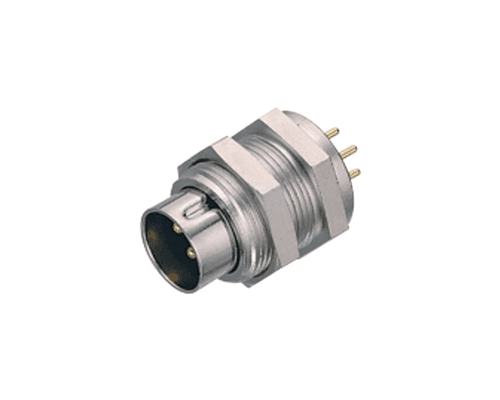

09-0073-00-02 thumbnail

Part no. : 09-0073-00-02

2 Way M9 Male Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0077-00-03 thumbnail

Part no. : 09-0077-00-03

3 Way M9 Male Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0081-00-04 thumbnail

Part no. : 09-0081-00-04

4 Way M9 Male Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0097-00-05 thumbnail

Part no. : 09-0097-00-05

5 Way M9 Male Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0477-00-07 thumbnail

Part no. : 09-0477-00-07

7 Way M9 Male Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0481-00-08 thumbnail

Part no. : 09-0481-00-08

8 Way M9 Male Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

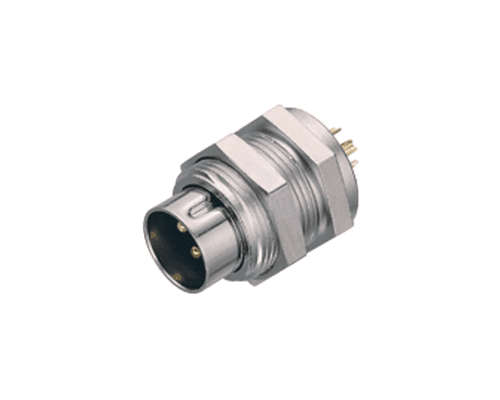

09-0073-20-02 thumbnail

Part no. : 09-0073-20-02

2 Way M9 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0077-20-03 thumbnail

Part no. : 09-0077-20-03

3 Way M9 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0081-20-04 thumbnail

Part no. : 09-0081-20-04

4 Way M9 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0097-20-05 thumbnail

Part no. : 09-0097-20-05

5 Way M9 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0477-22-07 thumbnail

Part no. : 09-0477-22-07

7 Way M9 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0481-22-08 thumbnail

Part no. : 09-0481-22-08

8 Way M9 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0477-65-07 thumbnail

Part no. : 09-0477-65-07

7 Way M9 Male Jam-Nut Panel Connector with Pre-Terminated Flexible PCB, IP40 (711 Series)

09-0481-65-08 thumbnail

Part no. : 09-0481-65-08

8 Way M9 Male Jam-Nut Panel Connector with Pre-Terminated Flexible PCB, IP40 (711 Series)

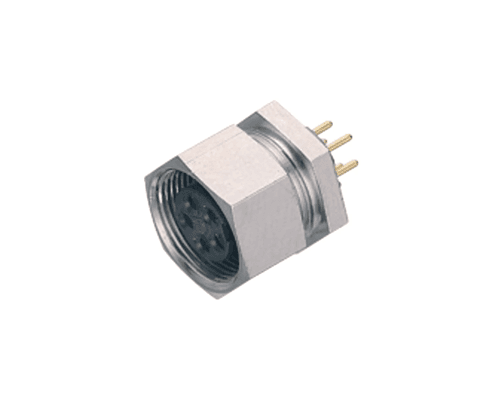

09-0074-00-02 thumbnail

Part no. : 09-0074-00-02

2 Way M9 Female Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0078-00-03 thumbnail

Part no. : 09-0078-00-03

3 Way M9 Female Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0082-00-04 thumbnail

Part no. : 09-0082-00-04

4 Way M9 Female Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0098-00-05 thumbnail

Part no. : 09-0098-00-05

5 Way M9 Female Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0478-00-07 thumbnail

Part no. : 09-0478-00-07

7 Way M9 Female Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

09-0482-00-08 thumbnail

Part no. : 09-0482-00-08

8 Way M9 Female Jam-Nut Panel Connector with Solder Contacts, IP40 (711 Series)

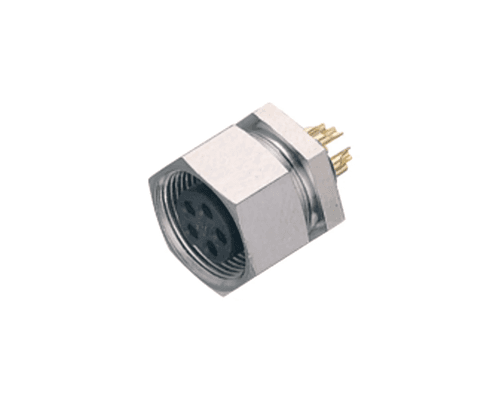

09-0074-20-02 thumbnail

Part no. : 09-0074-20-02

2 Way M9 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0078-20-03 thumbnail

Part no. : 09-0078-20-03

3 Way M9 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0082-20-04 thumbnail

Part no. : 09-0082-20-04

4 Way M9 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0098-20-05 thumbnail

Part no. : 09-0098-20-05

5 Way M9 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0478-22-07 thumbnail

Part no. : 09-0478-22-07

7 Way M9 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

09-0482-22-08 thumbnail

Part no. : 09-0482-22-08

8 Way M9 Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (711 Series)

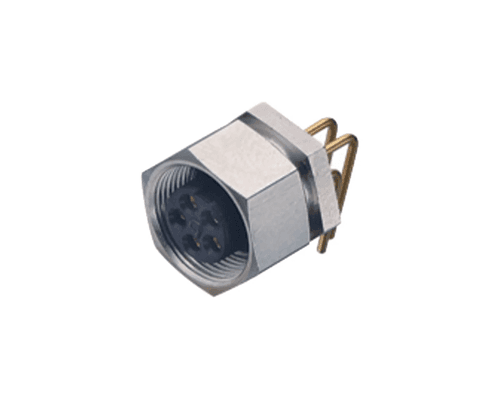

09-0082-32-04 thumbnail

Part no. : 09-0082-32-04

4 Way M9 Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP40 (711 Series)

09-0098-72-05 thumbnail

Part no. : 09-0098-72-05

5 Way M9 Female Jam-Nut Panel Connector with Angled Dip-Solder Contacts, IP40 (711 Series)

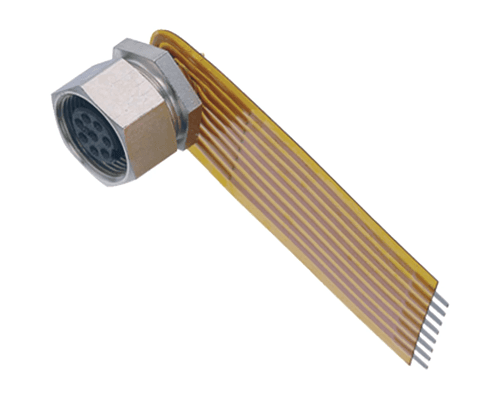

09-0478-65-07 thumbnail

Part no. : 09-0478-65-07

7 Way M9 Female Jam-Nut Panel Connector with Pre-Terminated Flexible PCB, IP40 (711 Series)

09-0482-65-08 thumbnail

Part no. : 09-0482-65-08

8 Way M9 Female Jam-Nut Panel Connector with Pre-Terminated Flexible PCB, IP40 (711 Series)
