binder Snap-in Miniature (720 Medical Application Series)

Binder Snap-in Miniature Connectors for Medical Applications  720

In brief:

Compact multi-pin circular connector system with Snap-in locking mechanism.

Snap-in miniature IP67 connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 7A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

The binder snap-in IP67 series is a fantastic range of waterproof miniature connectors suitable for harsh environments that require a simple locking mechanism.

The original 720 series comes in black as standard but this new introduction aimed at the medical market means the range now also boasts white/grey variants similar to that of RAL 9002.

The field attachable cable connectors have solder cup termination and can be mated in-line for an extension piece or coupled with the solder cup or dip solder panel receptacles. Two metre single ended overmoulded cable versions are also available on request in all pin configurations.

The 720 series has a unique option on the panel receptacle which is front mount / rear fastened as standard. With two optional panel adapters the receptacles can be either switched to be rear mount / front fastened or flush mounted to reduce the chances of accidental damage.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

80 products match your criteria:

99-9105-403-03 thumbnail

Part no. : 99-9105-403-03

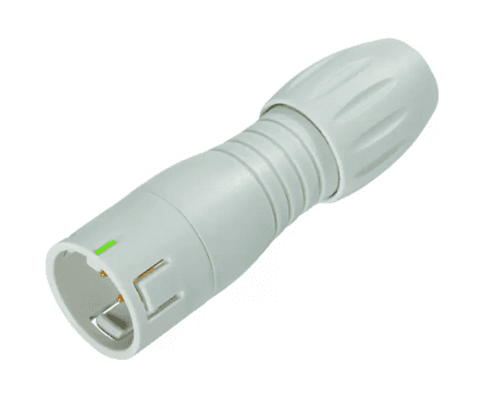

3 Way Snap-in Male Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (720 Medical Series)

99-9113-403-05 thumbnail

Part no. : 99-9113-403-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (720 Medical Series)

99-9125-403-08 thumbnail

Part no. : 99-9125-403-08

8 Way Snap-in Male Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (720 Medical Series)

99-9105-400-03 thumbnail

Part no. : 99-9105-400-03

3 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (720 Medical Series)

99-9113-400-05 thumbnail

Part no. : 99-9113-400-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (720 Medical Series)

99-9125-400-08 thumbnail

Part no. : 99-9125-400-08

8 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (720 Medical Series)

99-9133-402-12 thumbnail

Part no. : 99-9133-402-12

12 Way Snap-in Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, IP67 (720 Medical Series)

99-9105-450-03 thumbnail

Part no. : 99-9105-450-03

3 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9113-450-05 thumbnail

Part no. : 99-9113-450-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9125-450-08 thumbnail

Part no. : 99-9125-450-08

8 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9133-452-12 thumbnail

Part no. : 99-9133-452-12

12 Way Snap-in Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9105-460-03 thumbnail

Part no. : 99-9105-460-03

3 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9113-460-05 thumbnail

Part no. : 99-9113-460-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9125-460-08 thumbnail

Part no. : 99-9125-460-08

8 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9133-462-12 thumbnail

Part no. : 99-9133-462-12

12 Way Snap-in Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9105-470-03 thumbnail

Part no. : 99-9105-470-03

3 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9113-470-05 thumbnail

Part no. : 99-9113-470-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9125-470-08 thumbnail

Part no. : 99-9125-470-08

8 Way Snap-in Male Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9133-472-12 thumbnail

Part no. : 99-9133-472-12

12 Way Snap-in Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9106-403-03 thumbnail

Part no. : 99-9106-403-03

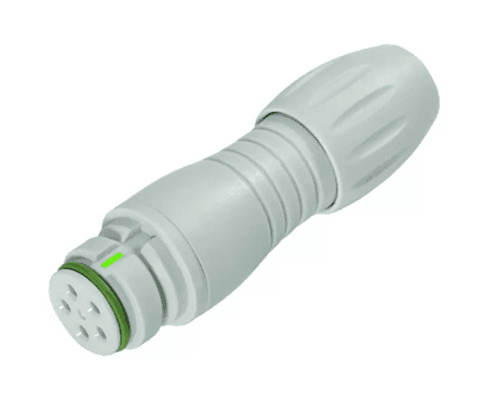

3 Way Snap-in Female Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (720 Medical Series)

99-9114-403-05 thumbnail

Part no. : 99-9114-403-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (720 Medical Series)

99-9126-403-08 thumbnail

Part no. : 99-9126-403-08

8 Way Snap-in Female Cable Connector with Solder Contacts, 2.5-4mm Straight Cable Entry, IP67 (720 Medical Series)

99-9106-400-03 thumbnail

Part no. : 99-9106-400-03

3 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (720 Medical Series)

99-9114-400-05 thumbnail

Part no. : 99-9114-400-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (720 Medical Series)

99-9126-400-08 thumbnail

Part no. : 99-9126-400-08

8 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, IP67 (720 Medical Series)

99-9134-402-12 thumbnail

Part no. : 99-9134-402-12

12 Way Snap-in Female Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, IP67 (720 Medical Series)

99-9106-450-03 thumbnail

Part no. : 99-9106-450-03

3 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9114-450-05 thumbnail

Part no. : 99-9114-450-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9126-450-08 thumbnail

Part no. : 99-9126-450-08

8 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9134-452-12 thumbnail

Part no. : 99-9134-452-12

12 Way Snap-in Female Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Red Version, IP67 (720 Medical Series)

99-9106-460-03 thumbnail

Part no. : 99-9106-460-03

3 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9114-460-05 thumbnail

Part no. : 99-9114-460-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9126-460-08 thumbnail

Part no. : 99-9126-460-08

8 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9134-462-12 thumbnail

Part no. : 99-9134-462-12

12 Way Snap-in Female Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Blue Version, IP67 (720 Medical Series)

99-9106-470-03 thumbnail

Part no. : 99-9106-470-03

3 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9114-470-05 thumbnail

Part no. : 99-9114-470-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9126-470-08 thumbnail

Part no. : 99-9126-470-08

8 Way Snap-in Female Cable Connector with Solder Contacts, 4-6mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9134-472-12 thumbnail

Part no. : 99-9134-472-12

12 Way Snap-in Female Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Green Version, IP67 (720 Medical Series)

99-9107-400-03 thumbnail

Part no. : 99-9107-400-03

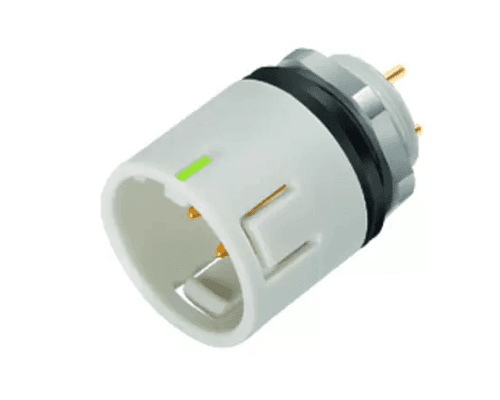

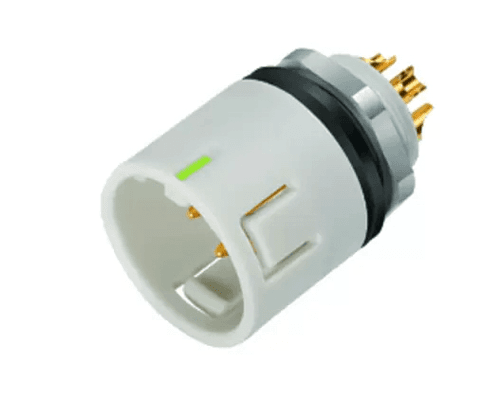

3 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9115-400-05 thumbnail

Part no. : 99-9115-400-05

5 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9127-400-08 thumbnail

Part no. : 99-9127-400-08

8 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9135-400-12 thumbnail

Part no. : 99-9135-400-12

12 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9107-50-03 thumbnail

Part no. : 99-9107-50-03

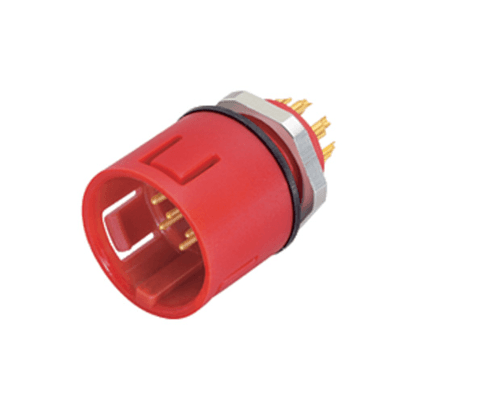

3 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9115-50-05 thumbnail

Part no. : 99-9115-50-05

5 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9127-50-08 thumbnail

Part no. : 99-9127-50-08

8 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9135-50-12 thumbnail

Part no. : 99-9135-50-12

12 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9107-60-03 thumbnail

Part no. : 99-9107-60-03

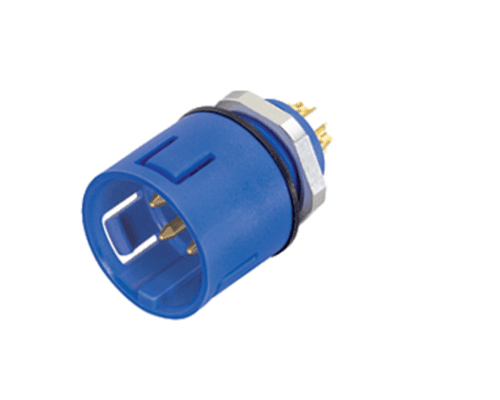

3 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9115-60-05 thumbnail

Part no. : 99-9115-60-05

5 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9127-60-08 thumbnail

Part no. : 99-9127-60-08

8 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9135-60-12 thumbnail

Part no. : 99-9135-60-12

12 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9107-70-03 thumbnail

Part no. : 99-9107-70-03

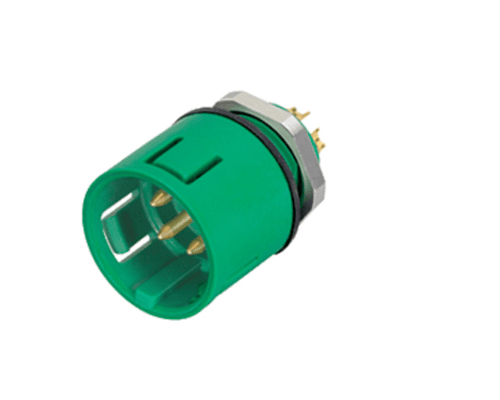

3 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9115-70-05 thumbnail

Part no. : 99-9115-70-05

5 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9127-70-08 thumbnail

Part no. : 99-9127-70-08

8 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9135-70-12 thumbnail

Part no. : 99-9135-70-12

12 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9107-490-03 thumbnail

Part no. : 99-9107-490-03

3 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9115-490-05 thumbnail

Part no. : 99-9115-490-05

5 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9127-490-08 thumbnail

Part no. : 99-9127-490-08

8 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9135-490-12 thumbnail

Part no. : 99-9135-490-12

12 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9108-400-03 thumbnail

Part no. : 99-9108-400-03

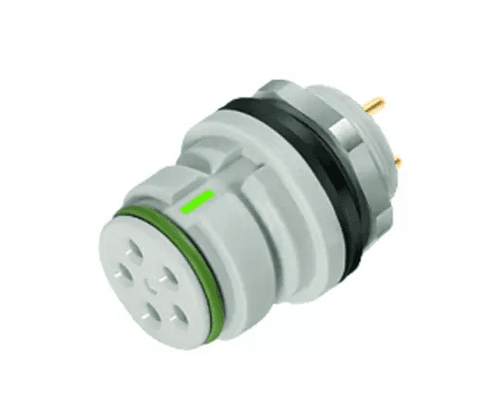

3 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9116-400-05 thumbnail

Part no. : 99-9116-400-05

5 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9128-400-08 thumbnail

Part no. : 99-9128-400-08

8 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9136-400-12 thumbnail

Part no. : 99-9136-400-12

12 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP67 (720 Medical Series)

99-9108-50-03 thumbnail

Part no. : 99-9108-50-03

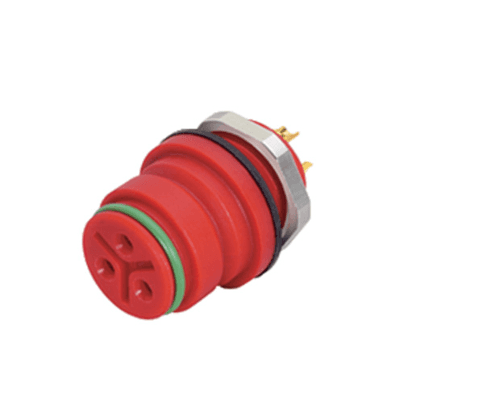

3 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9116-50-05 thumbnail

Part no. : 99-9116-50-05

5 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9128-50-08 thumbnail

Part no. : 99-9128-50-08

8 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9136-50-12 thumbnail

Part no. : 99-9136-50-12

12 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Red Version, IP67 (720 Medical Series)

99-9108-60-03 thumbnail

Part no. : 99-9108-60-03

3 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

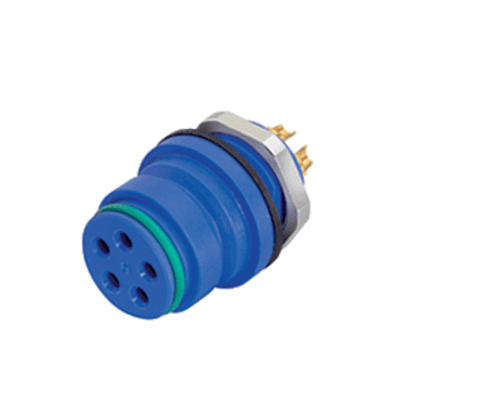

99-9116-60-05 thumbnail

Part no. : 99-9116-60-05

5 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9128-60-08 thumbnail

Part no. : 99-9128-60-08

8 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9136-60-12 thumbnail

Part no. : 99-9136-60-12

12 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Blue Version, IP67 (720 Medical Series)

99-9108-70-03 thumbnail

Part no. : 99-9108-70-03

3 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9116-70-05 thumbnail

Part no. : 99-9116-70-05

5 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9128-70-08 thumbnail

Part no. : 99-9128-70-08

8 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9136-70-12 thumbnail

Part no. : 99-9136-70-12

12 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, Green Version, IP67 (720 Medical Series)

99-9108-490-03 thumbnail

Part no. : 99-9108-490-03

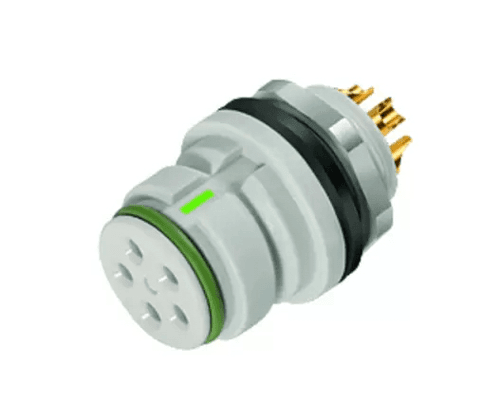

3 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9116-490-05 thumbnail

Part no. : 99-9116-490-05

5 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9128-490-08 thumbnail

Part no. : 99-9128-490-08

8 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

99-9136-490-12 thumbnail

Part no. : 99-9136-490-12

12 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (720 Medical Series)

08-2433-400-001 thumbnail

Part no. : 08-2433-400-001

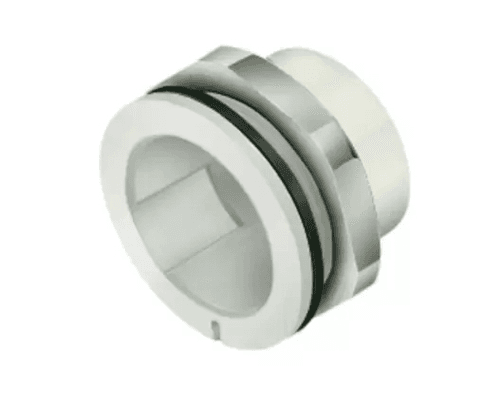

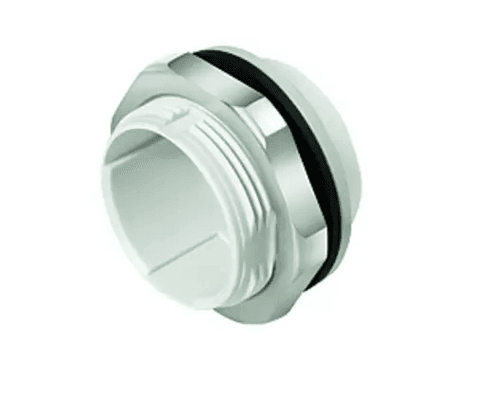

Adapter for Panel Mount Connector, Flush-mount (720 Medical Series)

08-2434-400-001 thumbnail

Part no. : 08-2434-400-001

Adaptor for Panel Mount Connector, Front-fastened (720 Medical Series)

Technical expertise is just a click away. For rapid service & personalised support, complete the following form or call 01744 815 001

What Our Customers Say

Quotation marks

“I am writing to your company today to say a very big thank you, I mainly speak to Fran she is such a lovely lady, nothing is to much trouble and your assembly workers are brilliant they have very kindly fitted in many urgent orders for me over the years and always deliver on time.

I love working with your company it is excellent so please say a very big thank you to all your staff, they have done you proud.”

Woods, Essex
Quotation marks

“Once again many thanks for your very good service response, I wish I could say all companies we deal with are like this, but sadly that is not always the case!”

Combstock, Hereford

Long Term, Flexible Call-Offs

We can facilitate your Kanban, Just-in-Time requirements and schedule orders over a 12 month period, supporting contracts that require that extra level of support and taking advantage of secure pricing levels and stock availability.

Clipboard
Quote & Order
Van
Stock Arrival & Start
Credit cards
Pay as You Go
Box with tick
Tracked Service
