09-0041-00-07

binder / M25 Power (691 Series)

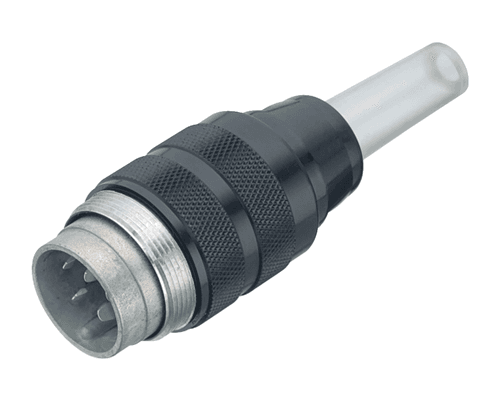

7 Way M25 Male Cable Connector with Solder Contacts, 5-8mm Straight Cable Entry, Shieldable, IP40 (691 Series)

09-0041-00-07 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number09-0041-00-07
Product TypeConnector
Brandbinder
Connector SeriesM25 Power (691 Series)
Backshell IncludedYes
Body OrientationStraight
Connector TypeCable Connector
Contact PlatingSilver
Contacts IncludedYes
Coupling Area MaterialMetal
Current Rating5A
Voltage Rating250V
Electrical NotesSee literature for derating curves
Degree of Ingress ProtectionIP40
EMC Shielding CapabilityNo
Gender of InsertMale
Housing MaterialMetal
Keyway/Coding TypeStandard
Locking SystemScrew
Min. Mechanical Mating Cycles500
Max. Wire Gauge/Cross-Sectional Area0.75mm²
Min. Cable Entry (mm)5
Max. Cable Entry (mm)8
Number of Ways7
Operating Temperature-40°C to 85°C
Positive Earth (PE)No
Shell sizeNA
Termination Method/TechnologySolder

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Robust multi-pin circular connector system with Screw locking mechanism.

M25 Power connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 10A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 1.50mm² and is capable of offering IP40 ingress protection in mated state.

Binder M25 Power Connectors 691

binder's M25 Power series is a range of industrial circular connectors with pin counts ranging from 3-12 and with IP40 environmental protection.

The connectors are secured with a screw locking mechanism and have solder termination.

Cable versions cater for 5-8mm cable OD with panel receptacles allowing up to 1.50mm² wire gauge on both 3 & 5 pole options.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
